Dump Trailers model comparison

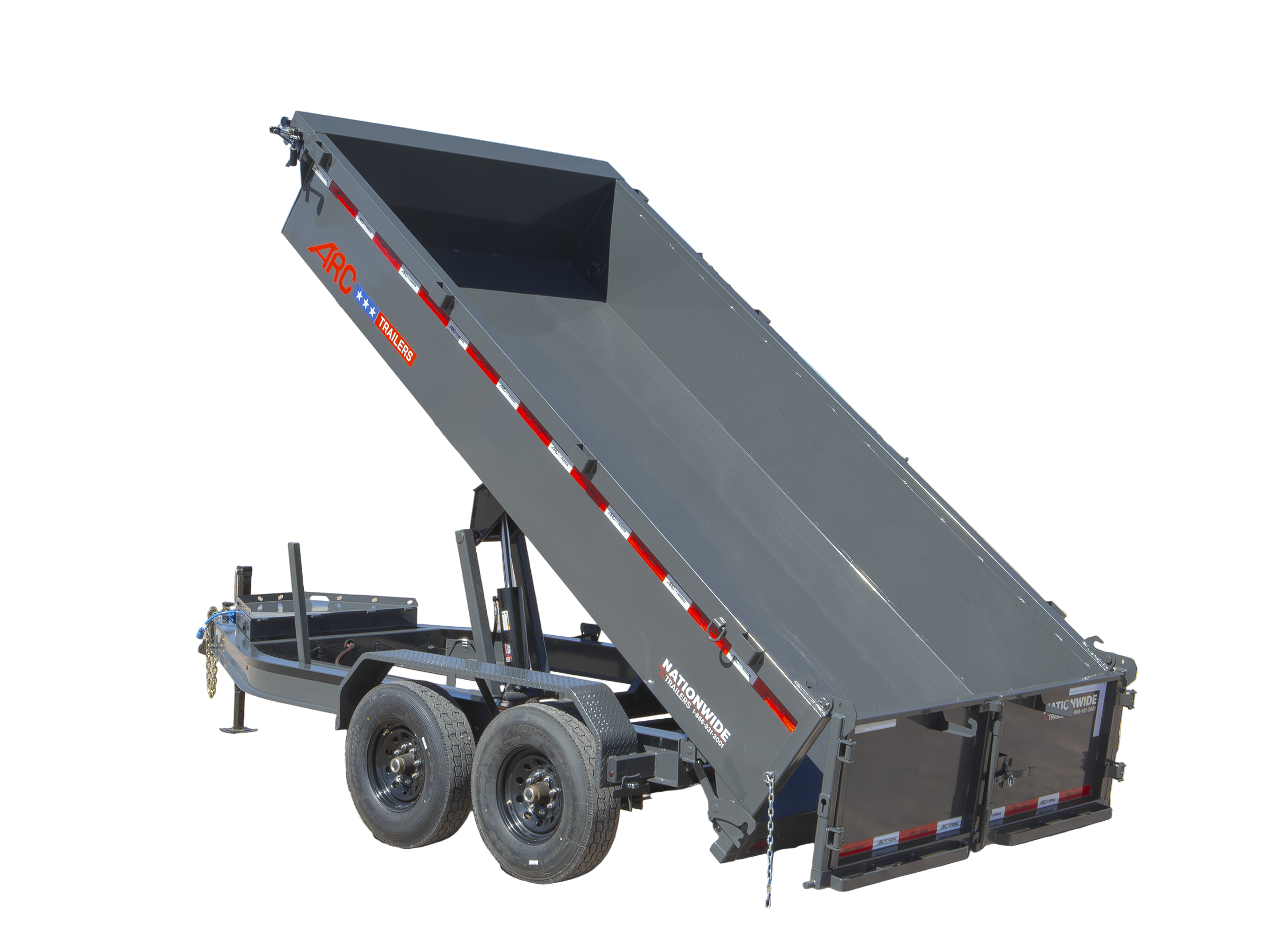

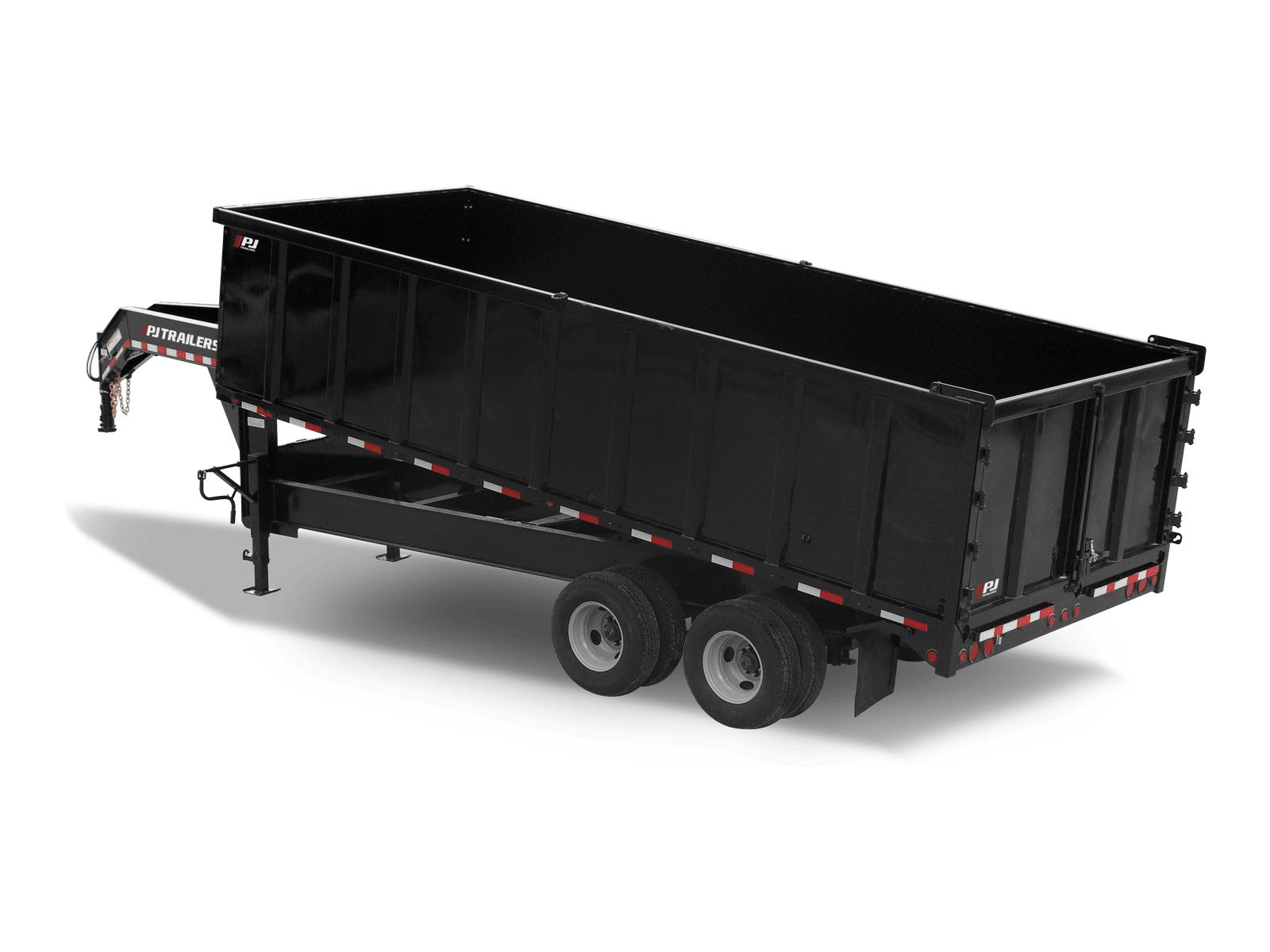

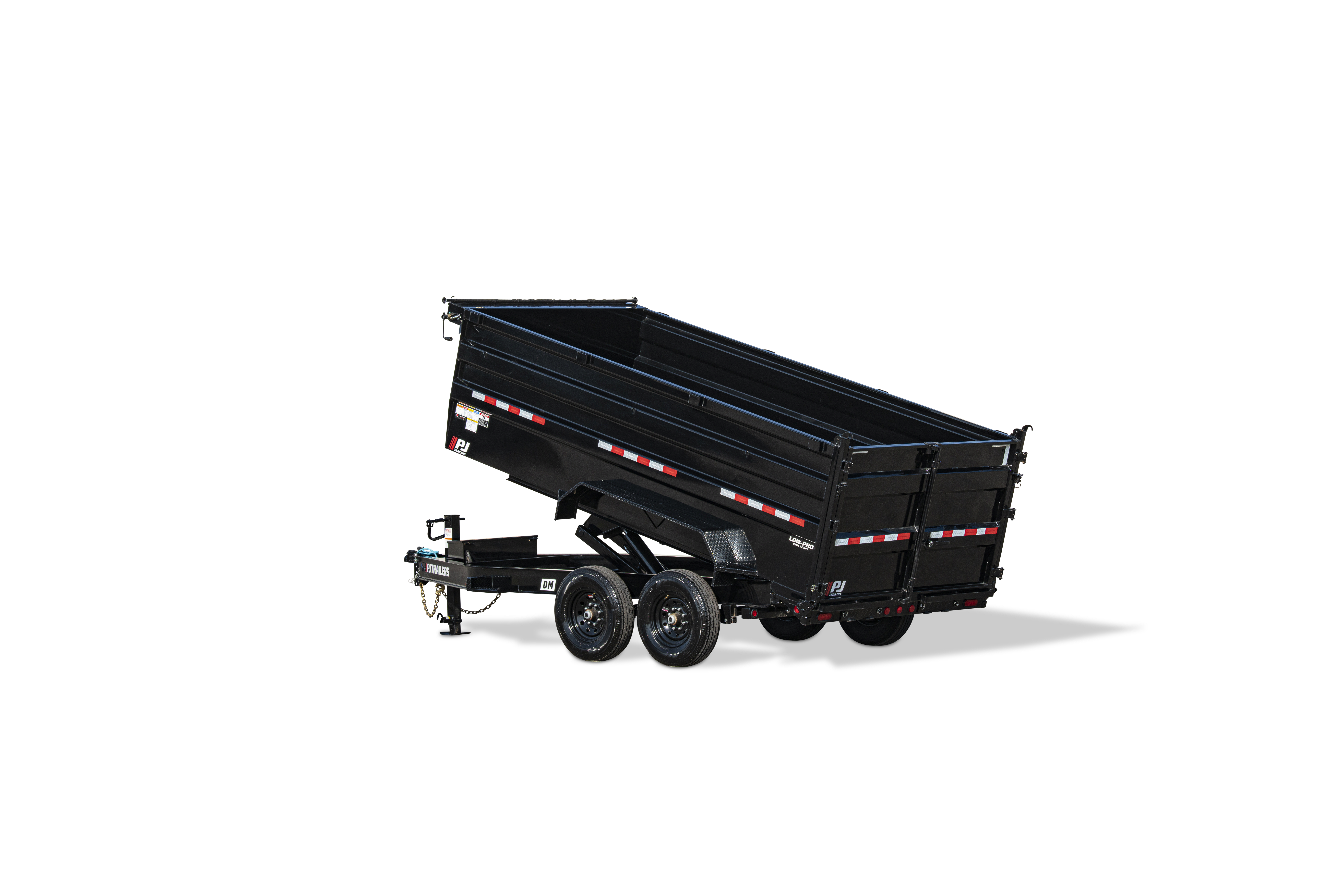

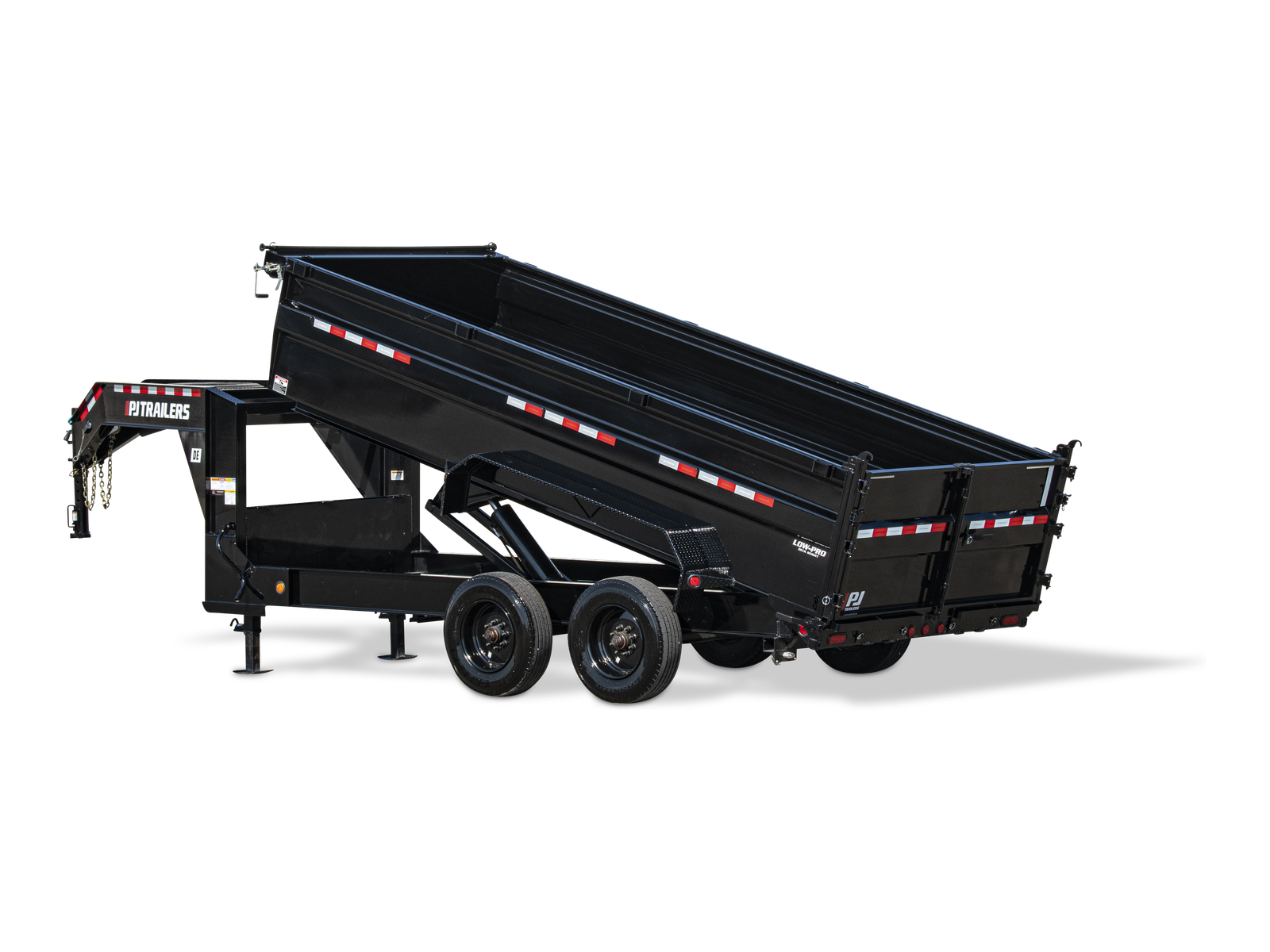

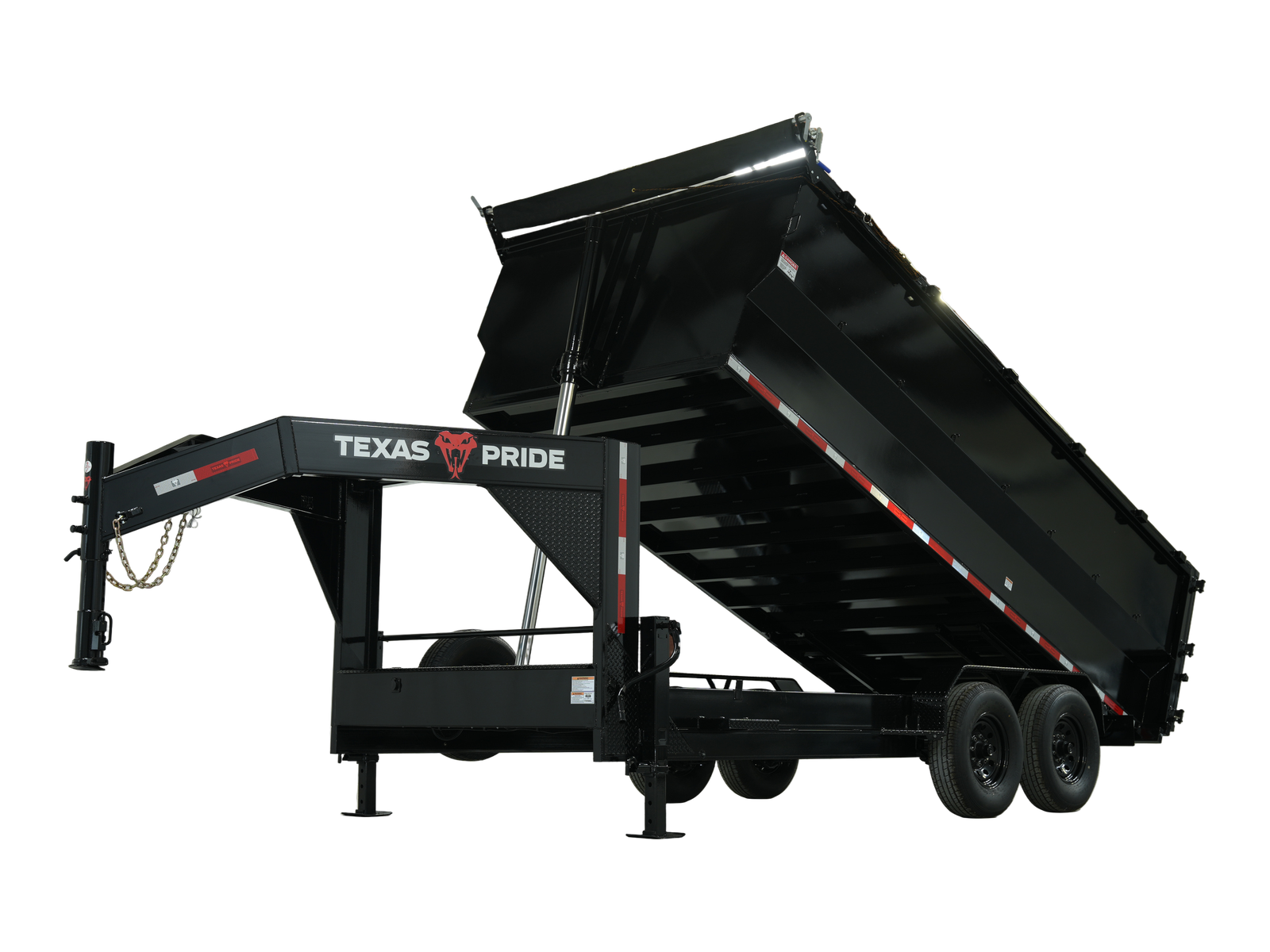

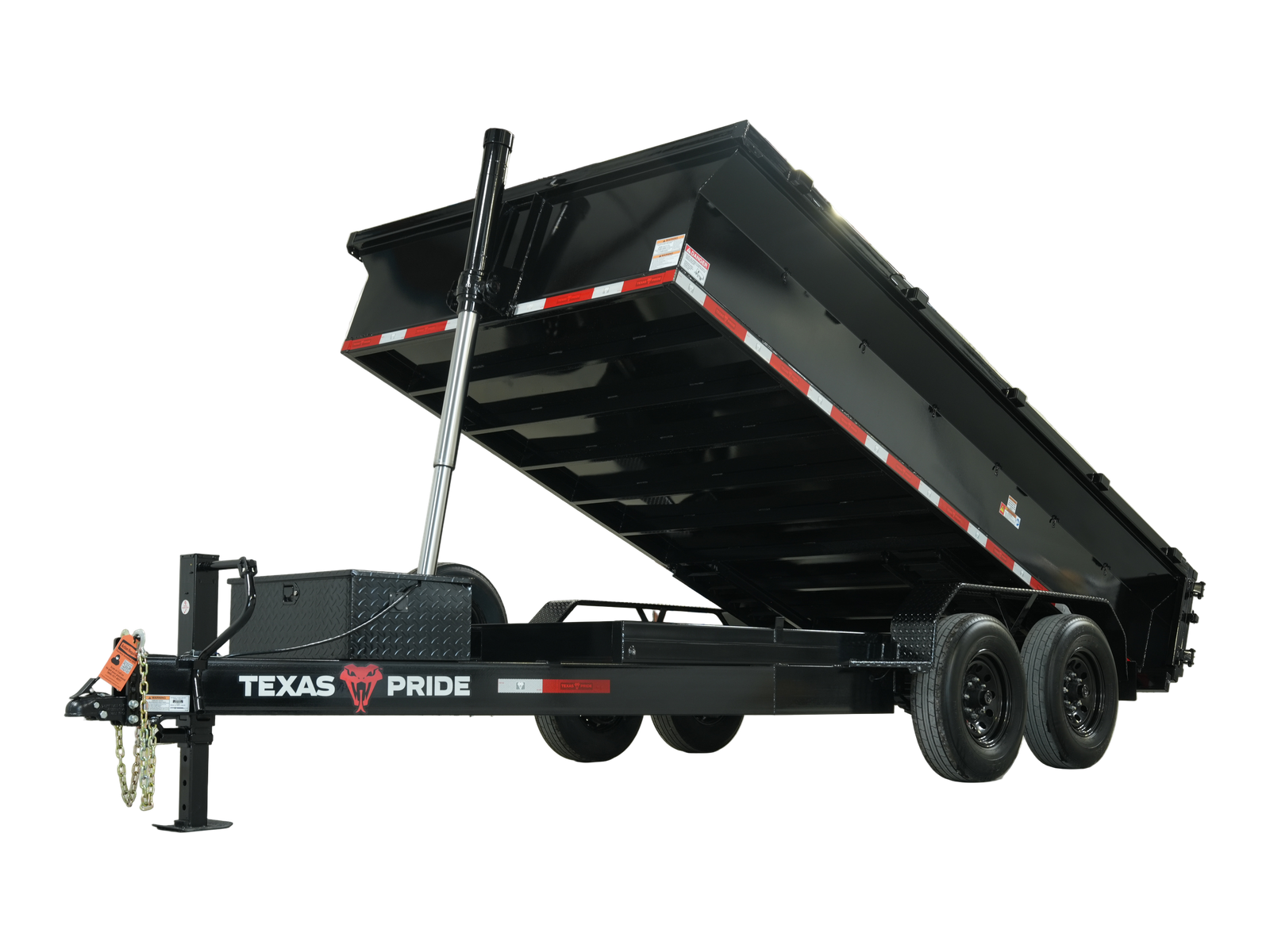

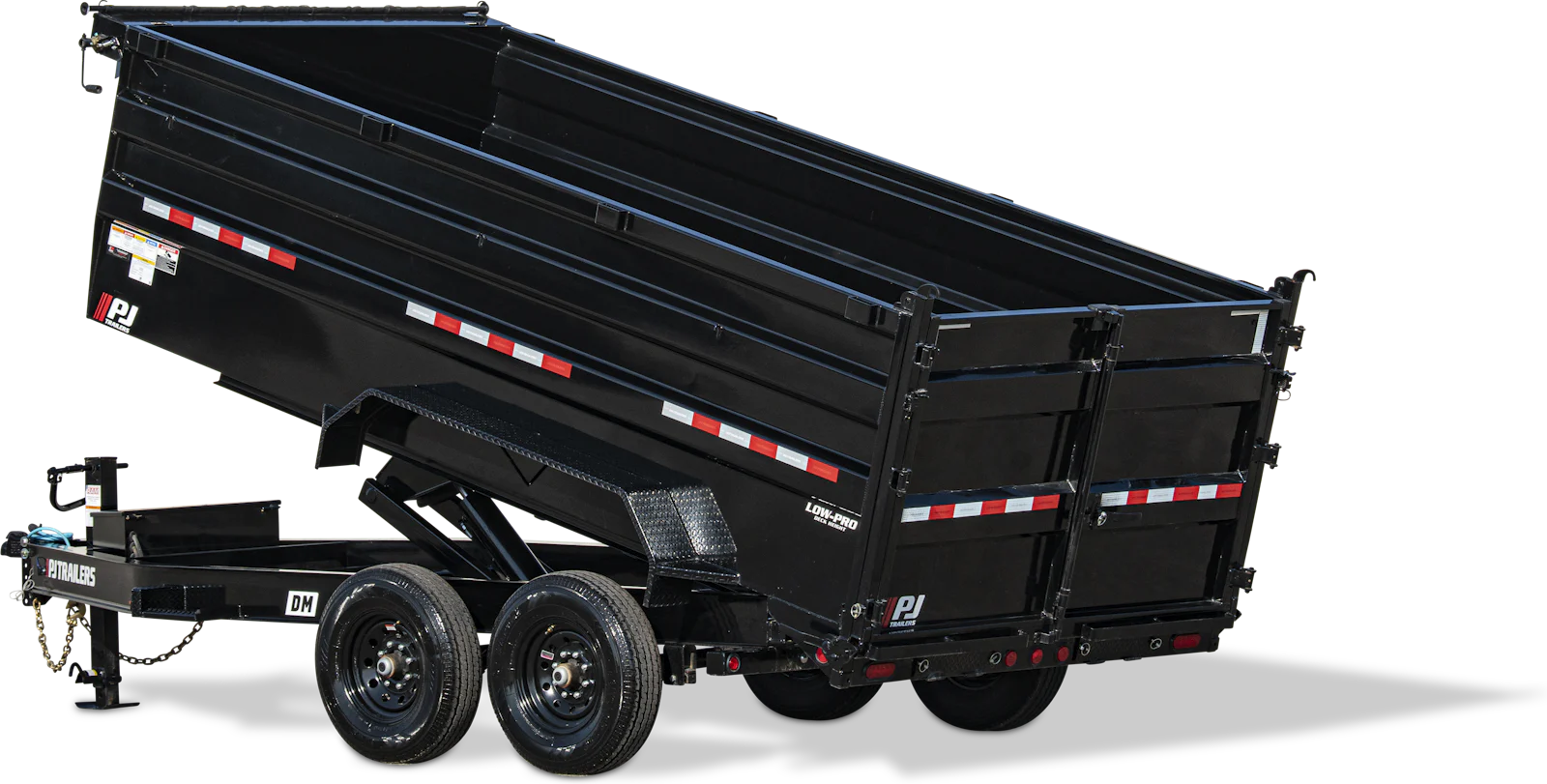

Specification	GDT ARC Trailers	DT1 PJ Trailers	D7 PJ Trailers	BDT ARC Trailers	DP-HD Texas Pride Trailers	DP-GN Texas Pride Trailers	GDH ARC Trailers	DD PJ Trailers	DP-BP Texas Pride Trailers	DE PJ Trailers	DM PJ Trailers	BDZ ARC Trailers	D5 PJ Trailers
Price from	$12,999	$10,099At participating locations	$7,990	$9,499	$18,499	$9,599	$20,699	$23,999	$7,949At participating locations	-	$10,749At participating locations	$8,499	$6,299At participating locations
Deck length	14 ft–16 ft	14 ft	14 ft	12 ft–16 ft	20 ft	14 ft–16 ft	16 ft	20 ft	14 ft–16 ft	16 ft	14 ft–16 ft	14 ft	10 ft
Width	83 in	83 in	83 in	83 in	102 in	83 in	83 in	96 in	83 in	82.5 in	83 in	83 in	60 in
Side height	-	24 in–48 in	-	-	48 in	36 in–48 in	36 in	-	24 in–48 in	-	36 in–48 in	-	18 in
GVWR	15,680 lb	15,400 lb	14,000 lb	14,000 lb	26,000 lb	14,000 lb	25,000 lb	25,000 lb	14,000 lb	22,000 lb	15,400 lb–16,800 lb	14,000 lb	7,000 lb
Empty weight	-	3,980 lb–4,490 lb	-	-	-	-	7,430 lb	8,850 lb	-	5,070 lb	5,120 lb–6,180 lb	-	1,940 lb
Payload capacity	-	10,910 lb–11,420 lb	-	-	-	-	17,570 lb	16,150 lb	-	16,930 lb	9,680 lb–11,220 lb	-	5,060 lb
Axles	2	2	2	2	2	2	2	2	2	2	2	2	2
Axle rating	-	7,000 lb each	-	-	12,000 lb each	7,000 lb each	10,000 lb each	10,000 lb each	7,000 lb each	-	7,000 lb each	-	3,500 lb each
Brakes	-	-	-	-	Electric drum	Electric drum	Electric drum	Electric drum	Electric drum	Electric drum	Electric drum	-	Electric drum
Suspension	-	Slipper spring	-	-	Slipper spring	Slipper spring	Torsion axles	Spring axles	Slipper spring	Torsion axles	-	-	Double eye spring
Coupler	Gooseneck	Bumper Pull · 2 5/16 in ball	Bumper Pull	Bumper Pull	Gooseneck · 2 5/16 in ball	Gooseneck · 2 5/16 in ball	Gooseneck · 2 5/16 in ball	Gooseneck · 2 5/16 in ball	Bumper Pull · 2 5/16 in ball	Bumper Pull	Gooseneck / Bumper Pull	Bumper Pull	Bumper Pull · 2 in ball
Tires	-	ST235/80R16	-	-	ST235/80R16	ST235/80R16	235/80R16	-	ST235/80R16	-	235/80R16	-	225/75R15
Spare tire	-	-	-	-	Included	Included	-	-	Not included	-	-	-	-
Jack	-	12,000 lb	-	-	12,000 lb	12,000 lb	10,000 lb	-	12,000 lb	-	-	-	8,000 lb
Deck	-	Steel	-	-	Steel	Steel	7 ga steel floor	10 ga steel bed	Steel	7 ga steel bed	Steel	-	10 ga steel bed
Walls	-	-	-	-	Steel	Steel	7 ga reinforced steel	-	Steel	-	-	-	-
Rear loading	-	-	-	-	Rear barn doors	Rear barn doors and slide-in ramps	78 in slide-in ramps and two-way gate	Two-way dump gate	Rear barn doors and slide-in ramps	Two-way dump gate and slide-in ramps	-	-	Split gate
In stock	46 units · 11 locations	23 units · 10 locations	94 units · 14 locations	34 units · 10 locations	4 units · 4 locations	23 units · 5 locations	5 units · 3 locations	7 units · 7 locations	50 units · 7 locations	-	91 units · 14 locations	27 units · 8 locations	5 units · 5 locations
Best for	Commercial hauling, High volume	Dense loads, Frequent use	Contractors, Mixed material	Commercial use	Heavy material, Commercial hauling, Large equipment	Daily hauling, Jobsite cleanup, Loose material	Commercial hauling	Heavy commercial work	Contractor cleanup, Material hauling, Equipment loading	Serious payload	Equipment loading, Contractors	Contractors	Mulch & brush, Small debris
