PJ Trailers 20'x83" 5" Channel Car Trailer (C5) - C5 configuration at Nationwide Trailers

Name: PJ Trailers 20'x83" 5" Channel Car Trailer (C5)
Brand: PJ Trailers
SKU: C522032CSNK-SP02

In stock at 9 stores

ModelC522032CSNK-SP02

Model photos1 / 9

Model overview

PJ Trailers 20'x83" 5" Channel Car Trailer (C5)

Key specifications

GVWR: 7,000
Axle: Tandem
Length: 20ft
Width: 83 in

Explore this model

All specifications

PJ Trailers 20'x83" 5" Channel Car Trailer (C5)

Specifications

GVWR

7,000

Axle

Tandem

Length

20ft

Width

83 in

Overview

GVWR: 7,000
GAWR: 3,500
Condition: New
Color: Black
Make: PJ Trailers
Model: C5
Model Code: C522032CSNK-SP02
Model Name: 20'x83" 5" Channel Car Trailer (C5)
Bed Material: Wood
Length: 20ft
Width: 83 in

Body

Deck Length: 15' deck + 5' dovetail
Tail: Dovetail
Frame: Channel
Frame Spec: 5" Channel Frame & Tongue

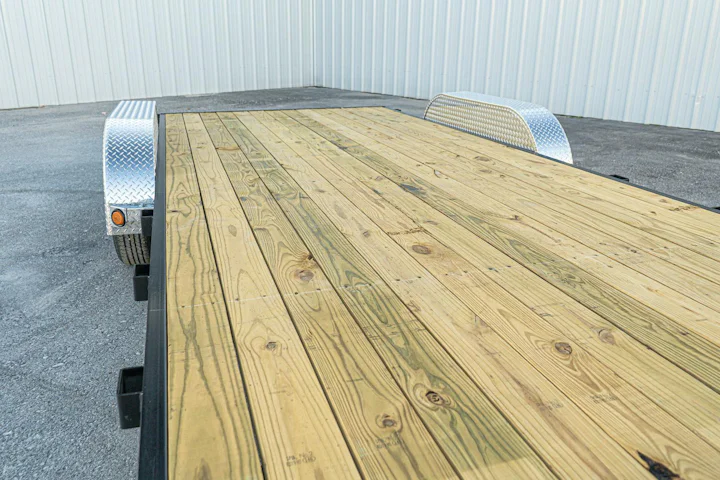

Deck: 2" Treated Pine
Deck Height: 22"
Crossmembers: 3" Channel Crossmembers 16" on Center
Fenders: 9" x 33" Treadplate Removable Aluminum
Bed Material: Wood
Coupler: Bumper Pull

Axles & Suspension

Axle Count: 2
Axle Rating (each): 3,500 lb each
Suspension: 4 Leaf Double Eye Spring Suspension
Brake: Electric Brake×1
Tires: 205 /75R15×4
Wheels: 15" Black Mod Wheel×4

Electronics

Lighting: Side Markers - DOT Approved Flushmount Lifetime LED Lights

Features

Cargo: Flushmount D-Rings - 4
Rampgate: 5' Rear Slide In Ramp×2
Jack: 5,000 lb Bulldog Pipe Mount Swivel Jack×1

Safety Features

Saftey Chains 5/16" Grade 30 Safety Chain w/Clevis hook×2

Breakaway System Defender 2 Electric Breakaway System w/ Charger

Reflective Tape 3M Dot Compliant Reflective Tape

Additional Specifications

Electronics: Wiring Harness - All-Weather Wiring Harness (7-way RV)

PJ Trailers 20'x83" 5" Channel Car Trailer (C5) - Stock #91049 - Image 1 of 9

1 / 9

Use arrows or view fullscreen

★About This Trailer

Options & Equipment

5" Channel Carhauler
BP 2" A-Frame
18ft
2 - 3,500 lb One Electric / Spring
2' Dovetail w/ 5' Rear Slide-in Ramps
Primer + Black Powder Coat
Mount Only for Spare Tire

Product Info

This black 20ft PJ C5 7K car trailer is a workhouse and comes standard with tandem 3500lb axles and one electric break riding on double-eye spring suspension and 205/75R15 radial tires. The 5in C-channel tongue and frame give the trailer rigid strength through through the 2ft dovetail. Two 5ft slide-in ramps make loading a breeze. The deck is 20ft long with 83in between the fenders. The removable treadplate aluminum fenders give you extra flexibility with your cargo, and 4 flush-mount D-rings will secure your vehicles and equipment.
C522032CSNKT

Specifications

GVWR

7,000

Axle

Tandem

Length

20ft

Width

83 in

Overview

GVWR: 7,000
GAWR: 3,500
Condition: New
Color: Black
Make: PJ Trailers
Model: C5
Model Code: C522032CSNK-SP02
Model Name: 20'x83" 5" Channel Car Trailer (C5)
Bed Material: Wood
Length: 20ft
Width: 83 in

Body

Deck Length: 15' deck + 5' dovetail
Tail: Dovetail
Frame: Channel
Frame Spec: 5" Channel Frame & Tongue
Deck: 2" Treated Pine
Deck Height: 22"
Crossmembers: 3" Channel Crossmembers 16" on Center
Fenders: 9" x 33" Treadplate Removable Aluminum
Bed Material: Wood
Coupler: Bumper Pull

Axles & Suspension

Axle Count: 2
Axle Rating (each): 3,500 lb each
Suspension: 4 Leaf Double Eye Spring Suspension
Brake: Electric Brake×1
Tires: 205 /75R15×4
Wheels: 15" Black Mod Wheel×4

Electronics

Lighting: Side Markers - DOT Approved Flushmount Lifetime LED Lights

Features

Cargo: Flushmount D-Rings - 4
Rampgate: 5' Rear Slide In Ramp×2
Jack: 5,000 lb Bulldog Pipe Mount Swivel Jack×1

Safety Features

Saftey Chains 5/16" Grade 30 Safety Chain w/Clevis hook×2

Breakaway System Defender 2 Electric Breakaway System w/ Charger

Reflective Tape 3M Dot Compliant Reflective Tape

Additional Specifications

Electronics: Wiring Harness - All-Weather Wiring Harness (7-way RV)

Warranty

PJ Trailers

3-year main frame, 1-year limited; axles by the axle maker.

Structural / frame · main frame; ramps/rails 1 yr: 3 years
Components · non-wearing items: 1 year

Full warranty All brand warranties

From$4,449
