PJ Trailers 12'x83" Low Pro Dump Trailer w/ 2' Sides (DL) - DLJ1272BSSK configuration at Nationwide Trailers

Name: PJ Trailers 12'x83" Low Pro Dump Trailer w/ 2' Sides (DL)
Brand: PJ Trailers
SKU: DLJ1272BSSK

In stock at 3 stores

ModelDLJ1272BSSK

Model photos1 / 16

Model overview

PJ Trailers 12'x83" Low Pro Dump Trailer w/ 2' Sides (DL)

Key specifications

GVWR: 14
Axle: Tandem
Length: 12ft
Width: 83 in

Explore this model

All specifications

PJ Trailers 12'x83" Low Pro Dump Trailer w/ 2' Sides (DL)

Specifications

GVWR

Axle

Tandem

Length

12ft

Width

83 in

Overview

GVWR: 14
GAWR: 7,000
Condition: New
Color: Black
Make: PJ Trailers
Model: DL
Model Code: DLJ1272BSSK
Model Name: 12'x83" Low Pro Dump Trailer w/ 2' Sides (DL)
Length: 12ft
Width: 83 in

Body

Tail: Straight Deck
Frame: I Beam
Frame Spec: 8" x 10 lb. I-Beam Frame & Tongue
Deck: 7 GA Steel Bed
Deck Height: 28"
Crossmembers: 3" Channel 16" on Center
Side Height: 24"
Fenders: 1 /8" Treadplate Steel
Wall Material: 10 Gauge Steel
Coupler: Bumper Pull

Axles & Suspension

Axle Count: 2
Suspension: 6 Leaf Slipper Spring Suspension
Brake: Electric Drum×2
Tires: 235 /80R16×4
Wheels: 16" Black Mod Wheel×4

Electronics

Lighting: Side Markers - Sealed Lightbox with DOT Approved Flushmount Lifetime LED Lights, Rear Lights - DOT Approved Flushmount Lifetime LED Lights

Features

Cargo: D-Rings (Welded inside the Box) - 4, Stake Pockets
Rampgate: 2 -Way Gate (Barn Doors & Spread Gate) w/ 6'6" Slide In Channel Ramps
Jack: 12,000 lb Drop Leg Jack×1

Safety Features

Breakaway System Defender 2 Electric Breakaway System w/ Charger

Reflective Tape 3M Dot Compliant Reflective Tape

Tarp Roll-up Tarp Kit (Pull Bar) 7' x 20'

Additional Specifications

Electronics: Battery - Interstate (TM) Deep Cycle, Charging System - 110V Integrated Trickle Charger, Wiring Harness - All-Weather Wiring Harness (7-way RV), Frame Wiring - Double Insulated Wiring Harness
Equipment: 12 VDC Hydraulic Pump, 5"x17" Hyd.Cylinder w/Scissor & 5"x 21" on 16'

Warranties

Axle Warranty - 5 Year Axle Warranty, Trailer Warranty - Three (3) Year Frame/One (1) Year Limited Warranty

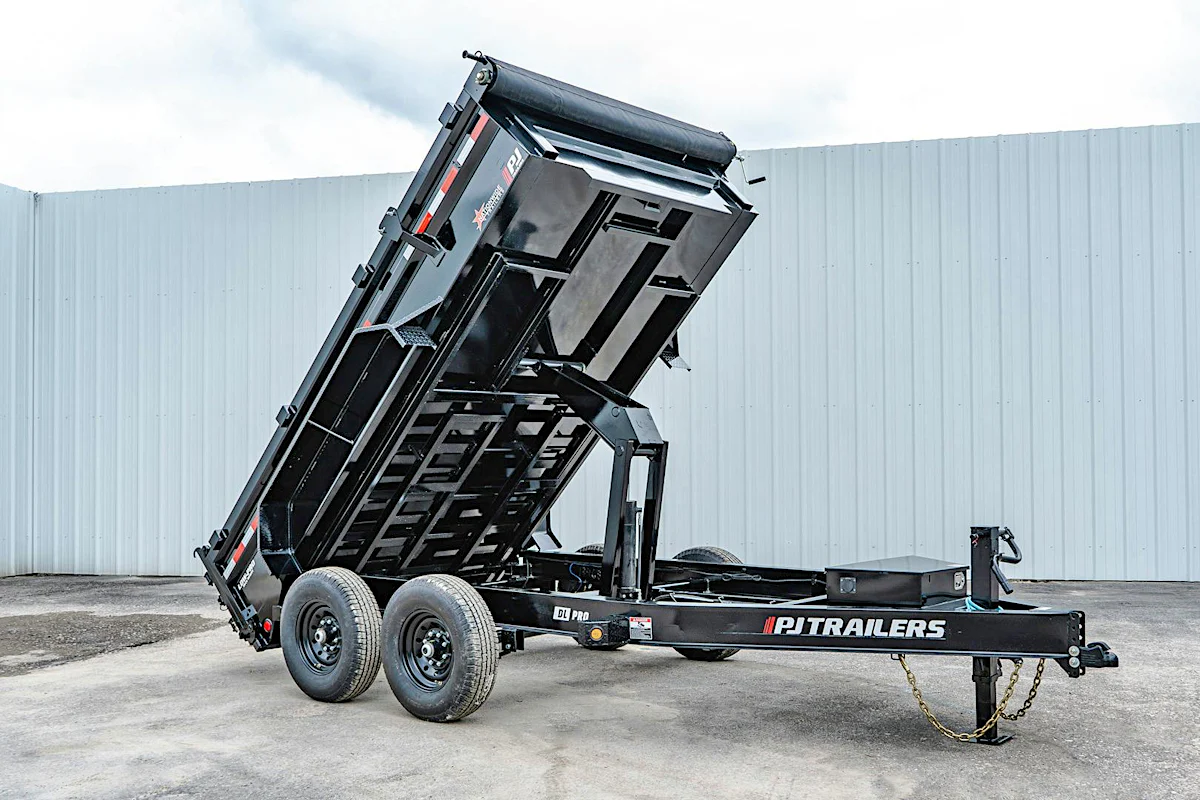

PJ Trailers 12'x83" Low Pro Dump Trailer w/ 2' Sides (DL) - Stock #86656 - Image 1 of 16

1 / 16

Use arrows or view fullscreen

★About This Trailer

Options & Equipment

83" Low Pro Dump
BP 2 5/16" Adjustable (14,000 lb.)
12ft
2 - 7,000# Electric / Spring
Split / Spreader Gate
Primer + Black Powder Coat 6 Leaf Slipper Spring
