PJ Trailers 36'x102" Gooseneck Flatbed Trailer w/ Hydraulic Dovetail (LY) - LY1Q36A2BSSK-WN02 configuration at Nationwide Trailers

Name: PJ Trailers 36'x102" Gooseneck Flatbed Trailer w/ Hydraulic Dovetail (LY)
Brand: PJ Trailers

In stock at 2 stores

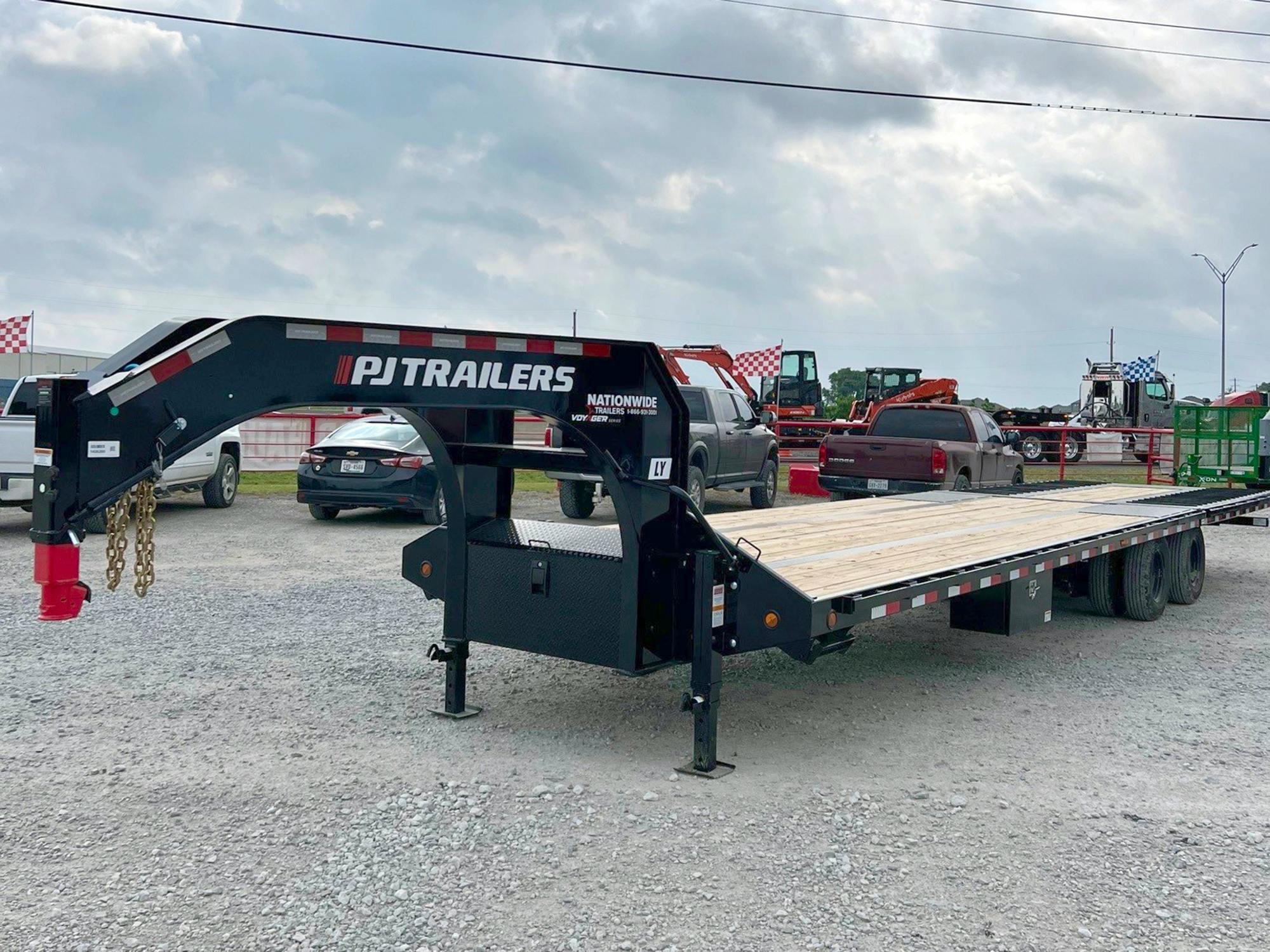

PJ Trailers 36'x102" Gooseneck Flatbed Trailer w/ Hydraulic Dovetail (LY) - Stock #LY1Q36A2BSSK-WN02 - Image 1 of 5

1 / 5

Use arrows or view fullscreen

★About This Trailer

Options & Equipment

-WN02: HD GN Winch Plate

Product Info

This all-new gooseneck trailer is engineered for the toughest jobs. Featuring a 12' hydraulic dovetail with a 12,000 lb. loading capacity and a 12-degree ramp angle, it makes loading heavy equipment fast and easy. The Demco EZ Latch Gooseneck Coupler ensures secure, hassle-free hitching, while the Formed ProBeam™ Gooseneck delivers unmatched strength and durability—mile after mile.

Specifications

GVWR

25,000

Axle

Tandem

Length

36ft

Width

102 in

Overview

GVWR: 25,000
GAWR: 10,000
Condition: New
Color: Black
Make: PJ Trailers
Model: LY
Model Code: LY1Q36A2BSSK-WN02
Model Name: 36'x102" Gooseneck Flatbed Trailer w/ Hydraulic Dovetail (LY)
Length: 36ft
Width: 102 in

Body

Deck Length: 31' deck + 5' dovetail
Tail: Hydraulic Dovetail
Frame: I Beam
Frame Spec: 14" x 22 lb. I-Beam
Deck: 2 ” Treated Pine
Deck Height: 33"
Crossmembers: 3" Channel Crossmembers 16" on Center
Coupler: Gooseneck

Axles & Suspension

Axle Count: 2
Suspension: Spring
Brake: Electric Over Hydraulic Disc
Tires: 235 /80R16 10-ply LRE w/ Spare
Wheels: 16" Black Mod

Electronics

Lighting: All LED Lighting

Features

Cargo: Rubrail with Pipe Spools & Stake Pockets
Rampgate: 12 ’ Hydraulic Dovetail, 12 Degree Ramp Angle
Jack: 12 ,000lb Jacks Drop Leg Jacks×2

Safety Features

Safety Chains

Electric Breakaway Kit w/ Charger

DOT Reflective/Conspicuity Tape

Additional Specifications

Electronics: Group 24 Deep Cycle Battery, 110V Integrated Trickle Charger, All-Weather Wiring Harness (7-way RV)
Equipment: 3.5" x 16" Hyd. Cylinder, Self Contained Hydraulic Unit with Wireless Remote

From$18,898Real Deal pricing from $18,898
