PJ Trailers 20 ft · 9,899 lb GVWR · 5 ft slide-in ramps - UL configuration at Nationwide Trailers

In stock at 9 stores

ModelULA2052BSRK-FE05-JA12-SP02-SR22

Model photos1 / 8

Model overview

PJ Trailers 20 ft · 9,899 lb GVWR · 5 ft slide-in ramps

Key specifications

Deck length: 20 ft
Width: 83 in
Deck height: 21 in
GVWR: 9,899 lb

Explore this model

All specifications

PJ Trailers 20 ft · 9,899 lb GVWR · 5 ft slide-in ramps

Deck length: 20 ft
Width: 83 in
Deck height: 21 in
GVWR: 9,899 lb
Empty weight: 2,595 lb
Payload capacity: 7,304 lb
Axles: 2
Axle rating: 5,200 lb each
Brakes: Electric drum

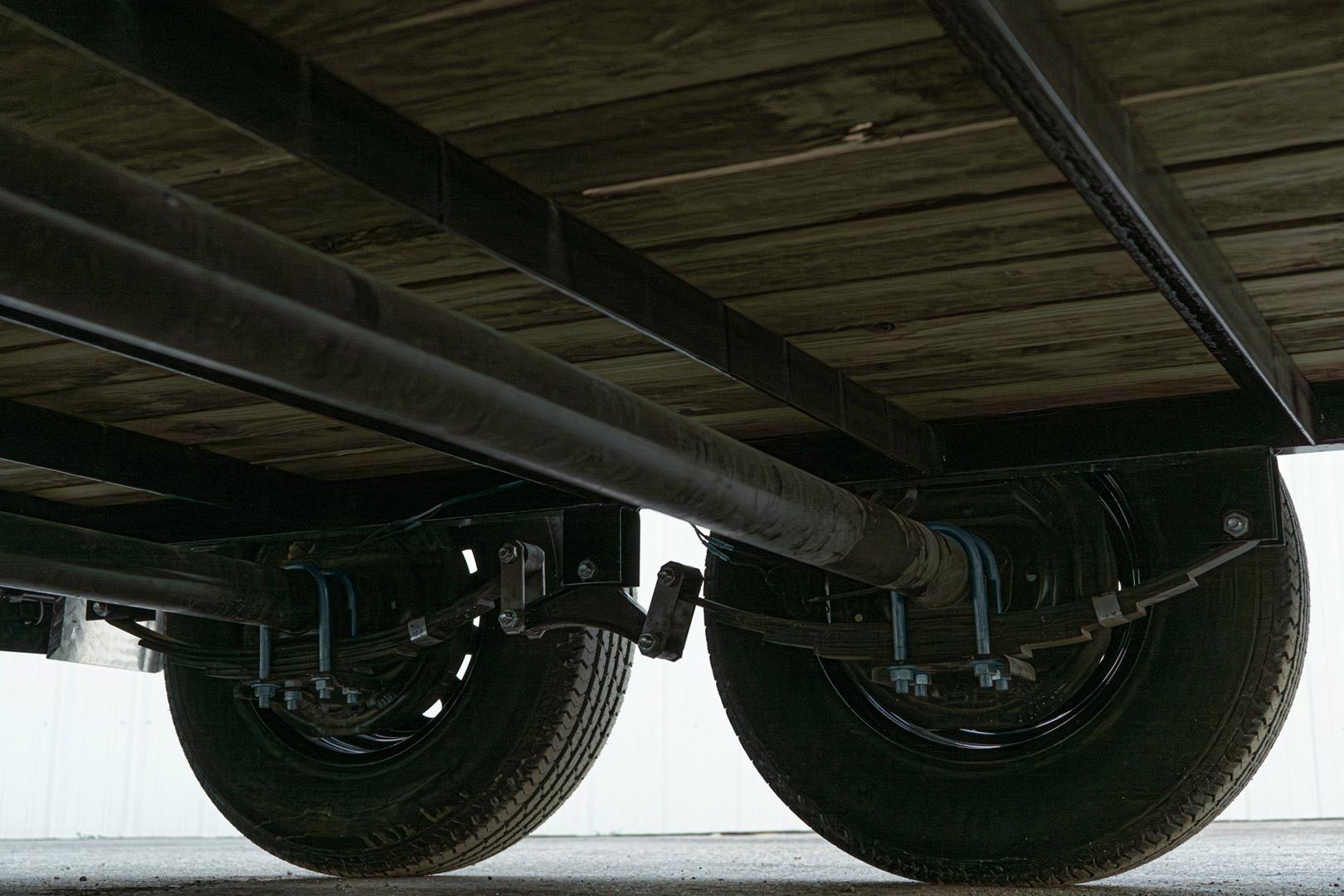

Suspension: Double eye spring

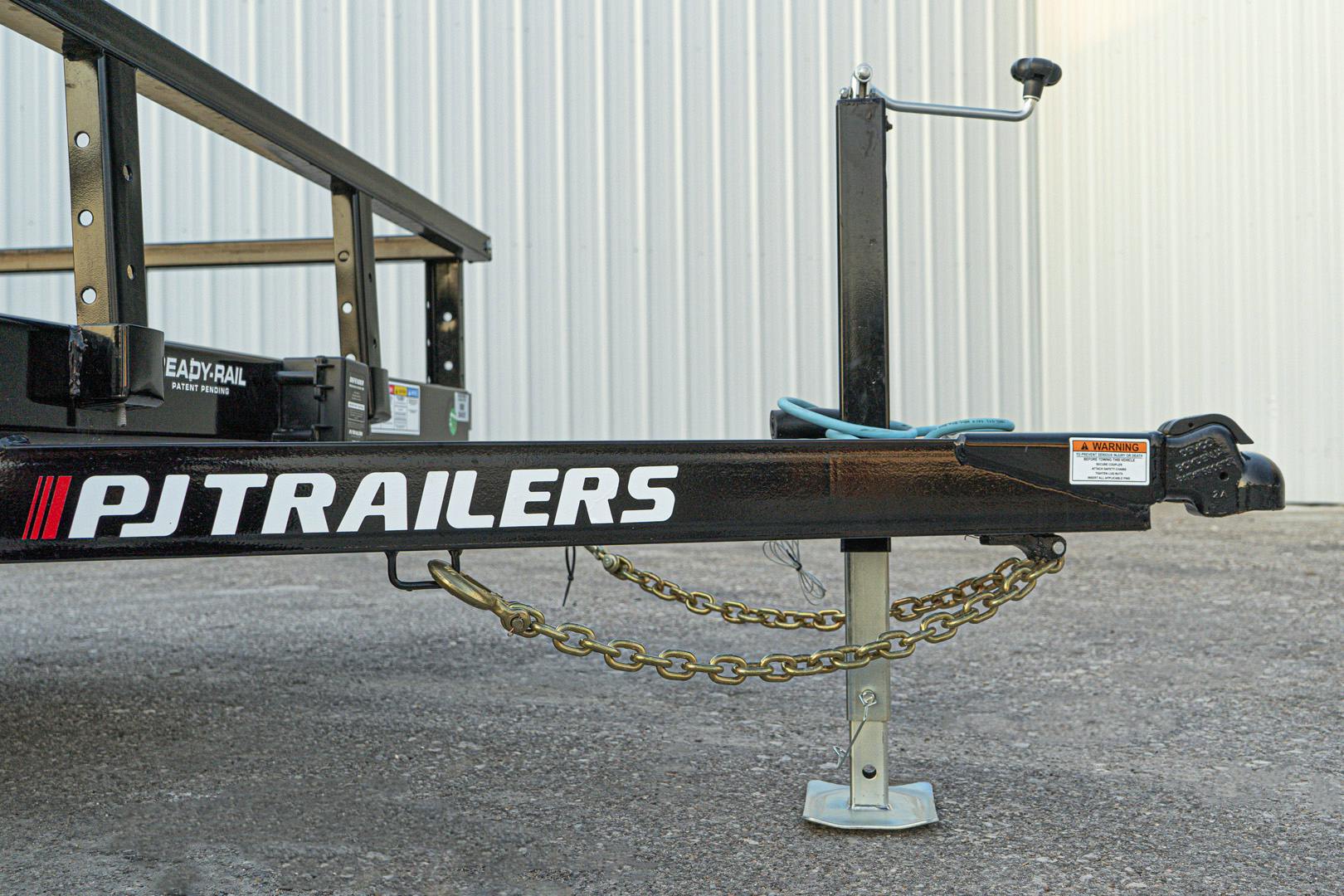

Coupler: Bumper Pull · 2 5/16 in ball
Tires: 225/75R15
Jack: 7,000 lb

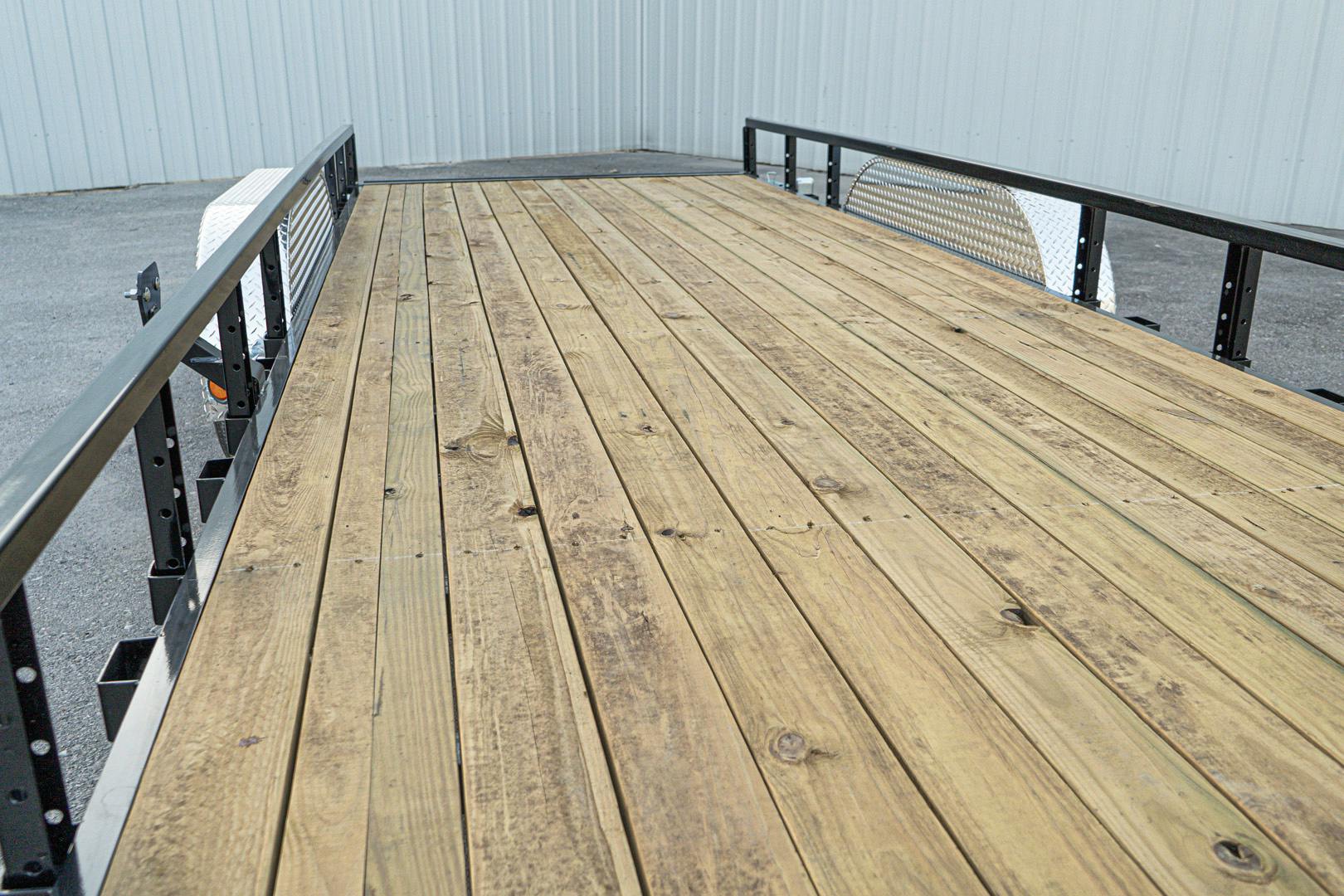

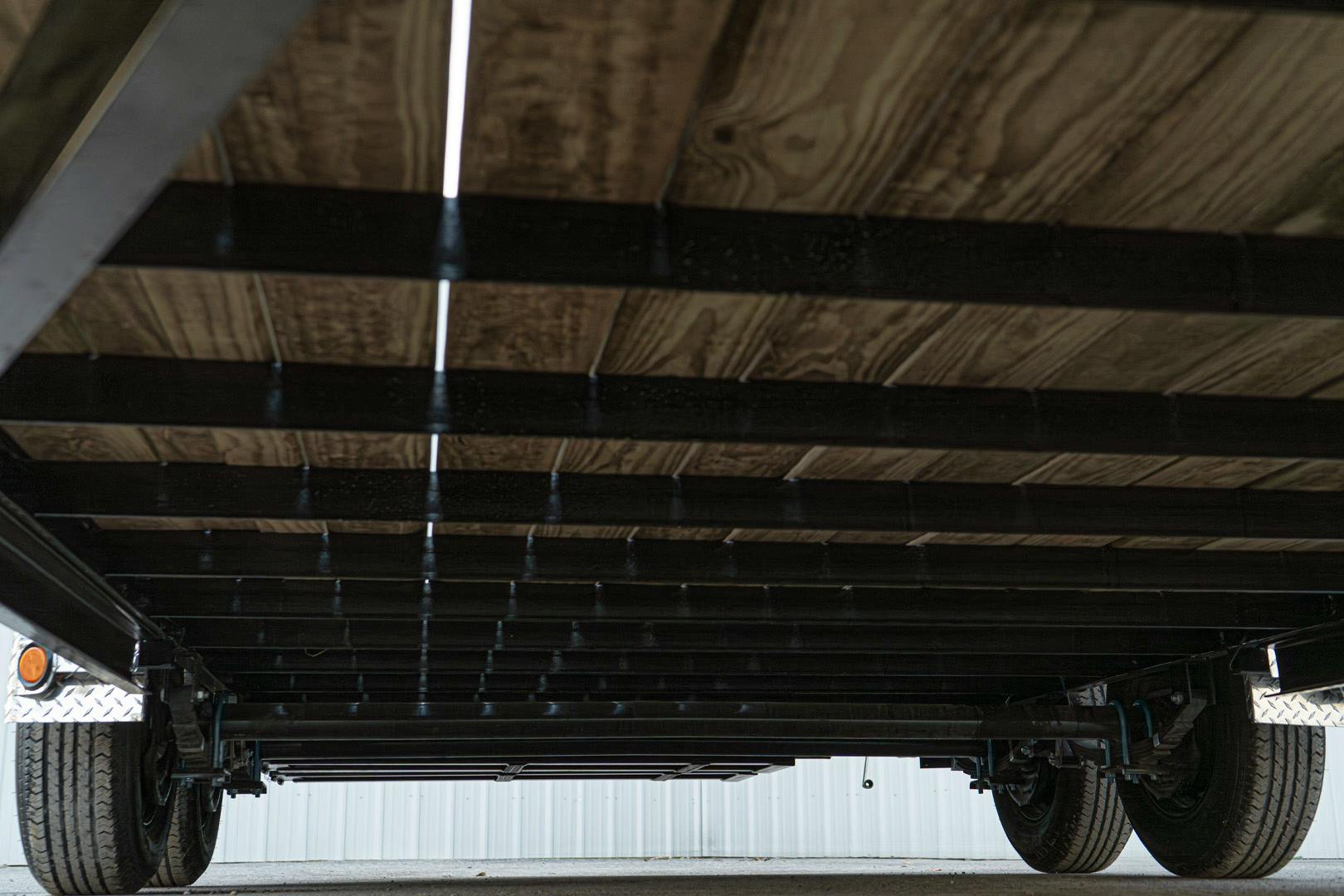

Deck: 2 in treated pine deck
Rear loading: 5 ft slide-in ramps

PJ Trailers 20 ft · 9,899 lb GVWR · 5 ft slide-in ramps - Stock #PJ87016 - Image 1 of 8

1 / 8

Use arrows or view fullscreen

★About This Trailer

Options & Equipment

83" Tndm Axle Channel Utility
BP 2 5/16" A-Frame
20ft
2 - 5,200# Electric / Spring
Straight Deck w/ 5' Slide-in Ramps
Primer + Black Powder Coat
7k Jack

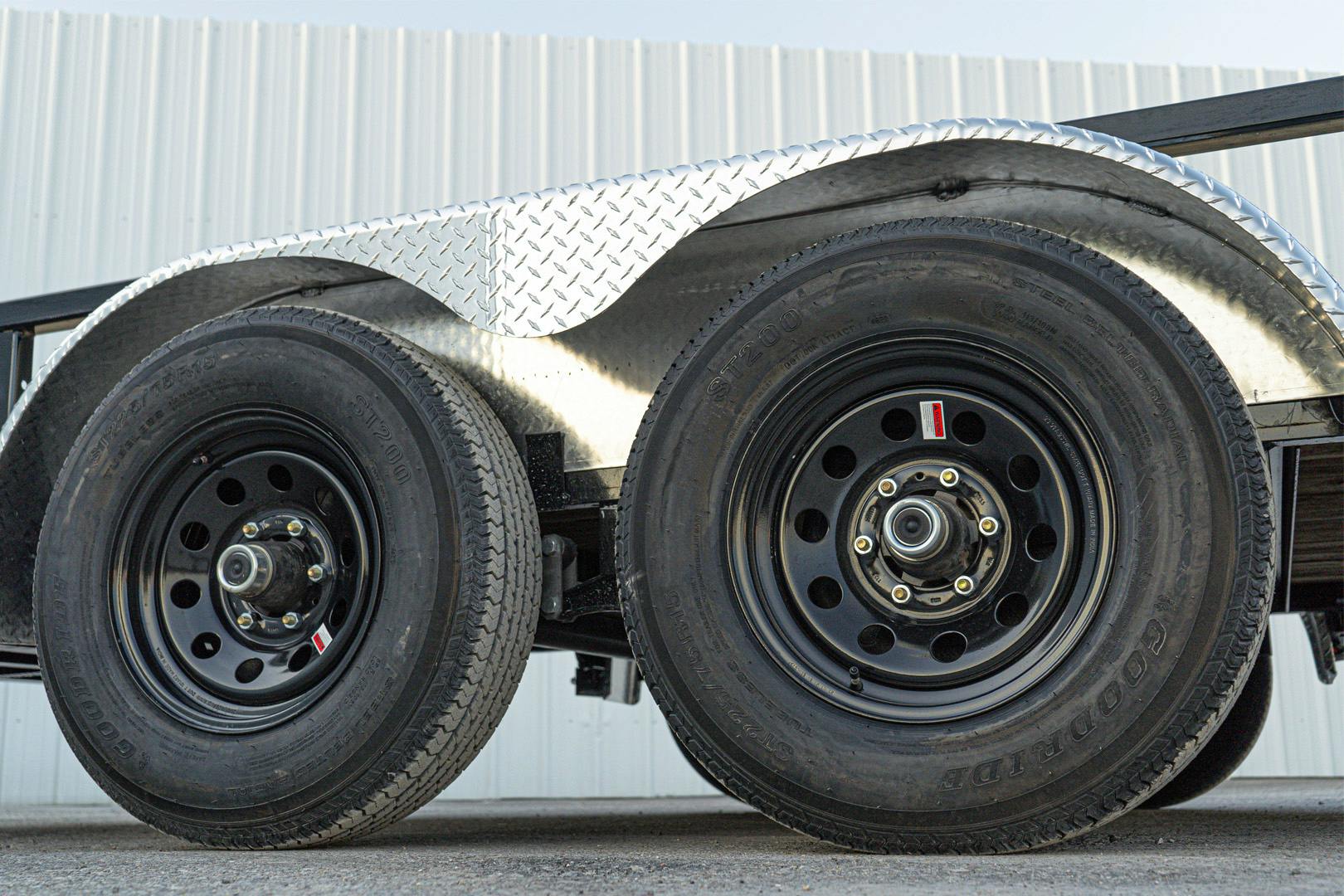

Steel Diamond Plate Fenders

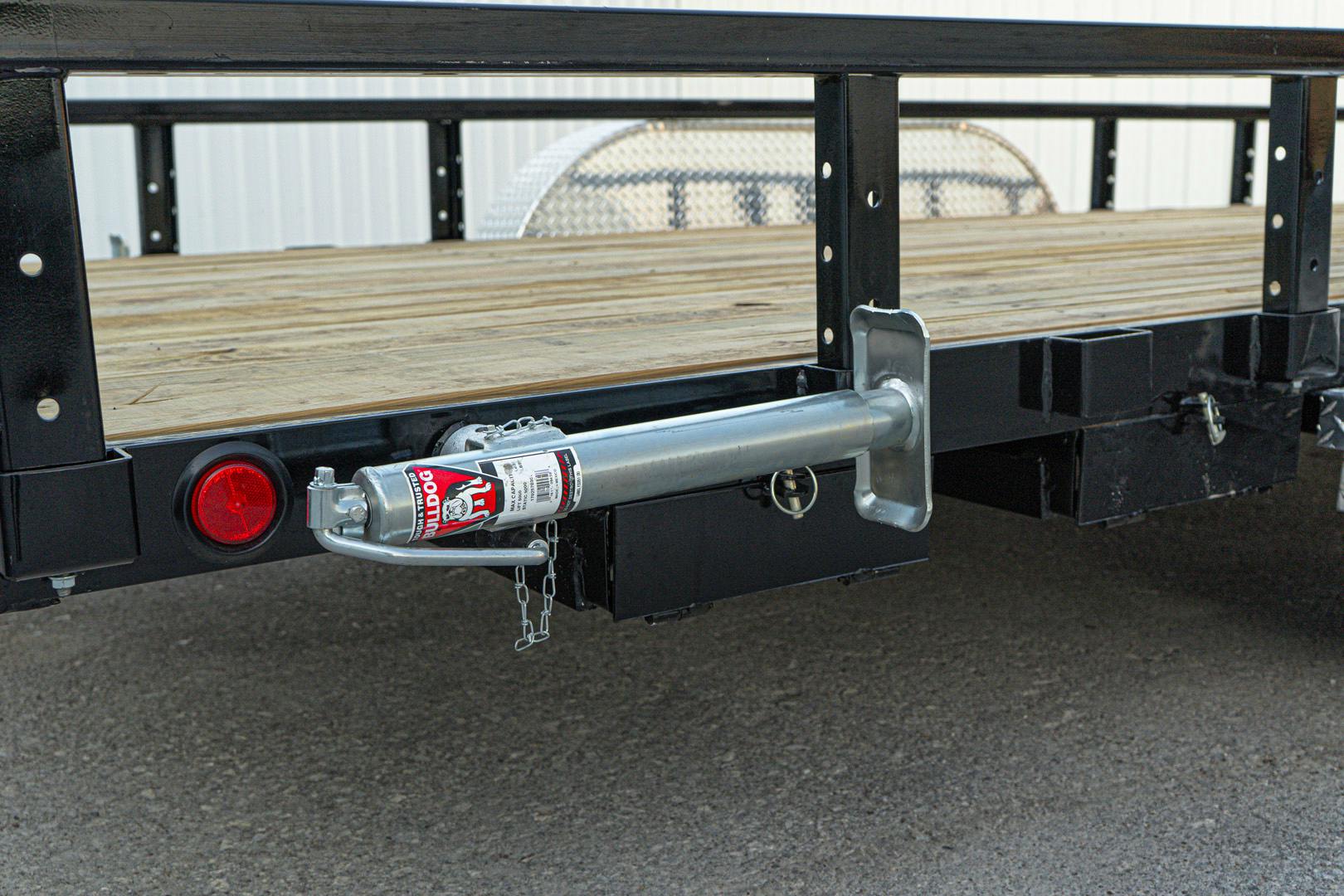

Spare Tire Mount

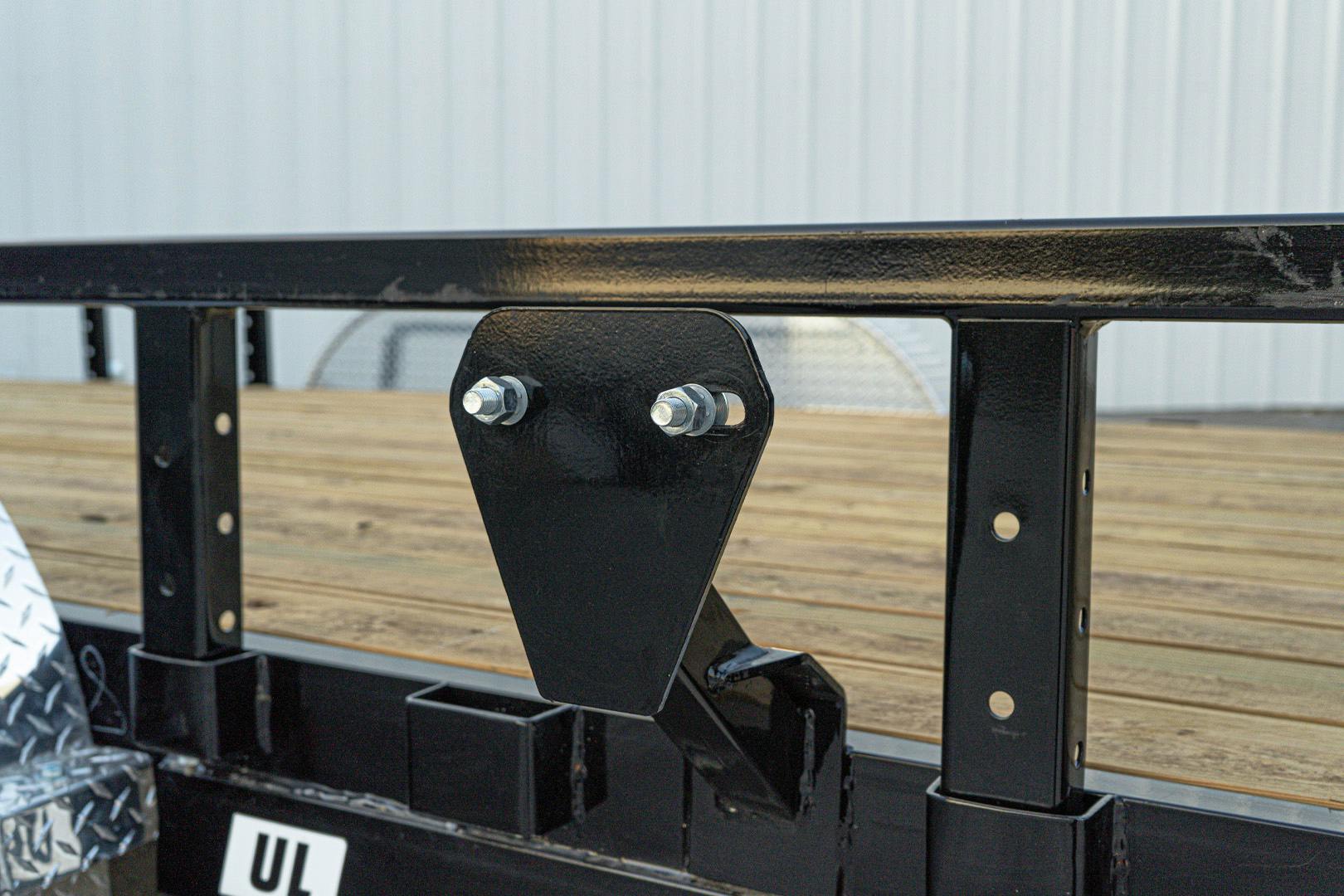

2" X 2" Square Tube Siderails (Removable)

Specifications

Deck length: 20 ft
Width: 83 in
Deck height: 21 in
GVWR: 9,899 lb
Empty weight: 2,595 lb
Payload capacity: 7,304 lb
Axles: 2
Axle rating: 5,200 lb each
Brakes: Electric drum
Suspension: Double eye spring
Coupler: Bumper Pull · 2 5/16 in ball
Tires: 225/75R15
Jack: 7,000 lb
Deck: 2 in treated pine deck
Rear loading: 5 ft slide-in ramps

Warranty

PJ Trailers

3-year main frame, 1-year limited; axles by the axle maker.

Structural / frame · main frame; ramps/rails 1 yr: 3 years
Components · non-wearing items: 1 year

Full warranty All brand warranties

Prices across stores$4,999 – $5,199

Pricing varies by unit and location. Select a store to see individual prices.
