ARC Trailers ARC BDT 16' × 83" Telescopic Dump Trailer - BDT configuration at Nationwide Trailers

Name: ARC Trailers ARC BDT 16' × 83" Telescopic Dump Trailer
Brand: ARC Trailers

In stock at 6 stores

ModelModel

Model photos1 / 6

Model overview

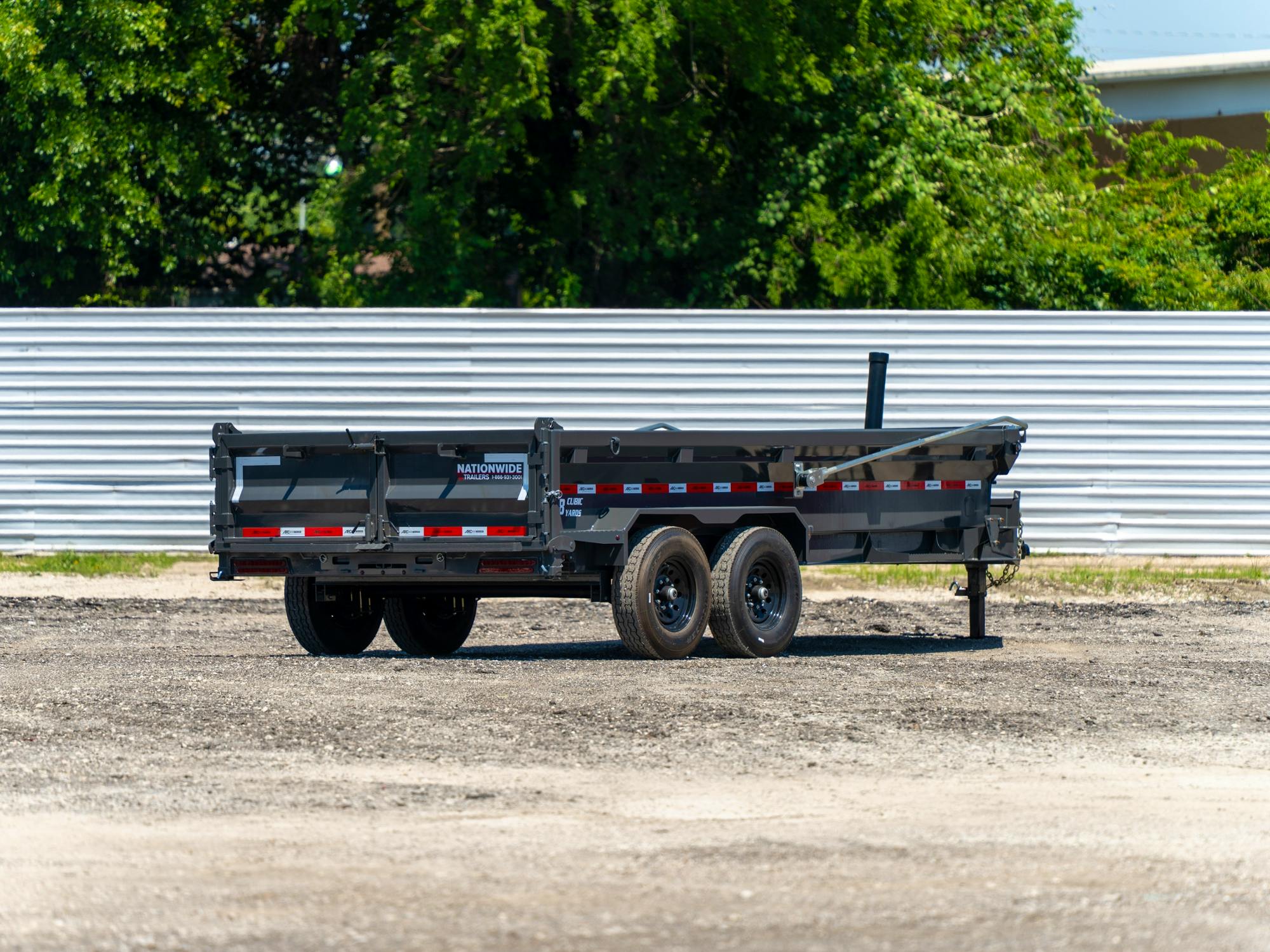

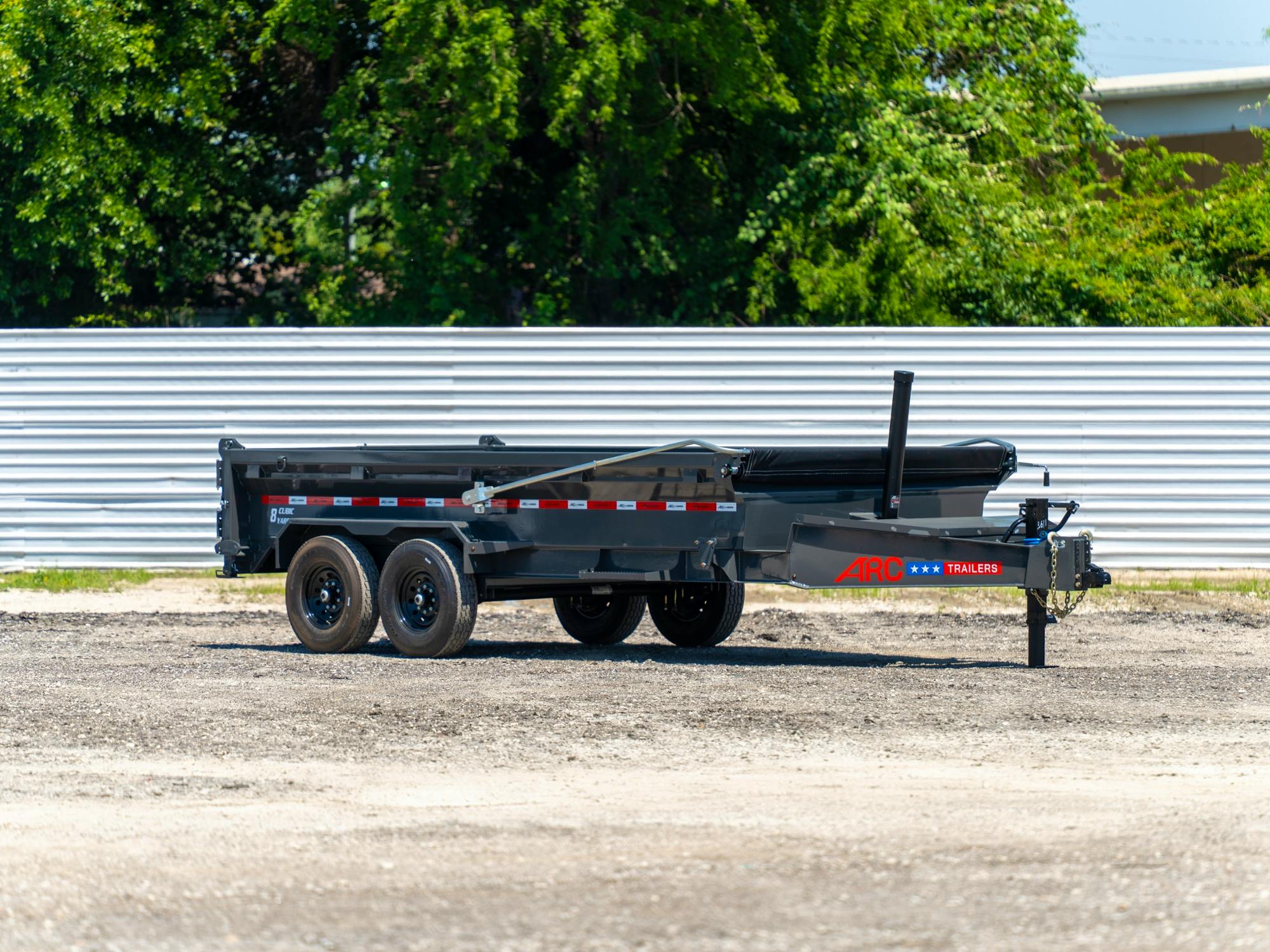

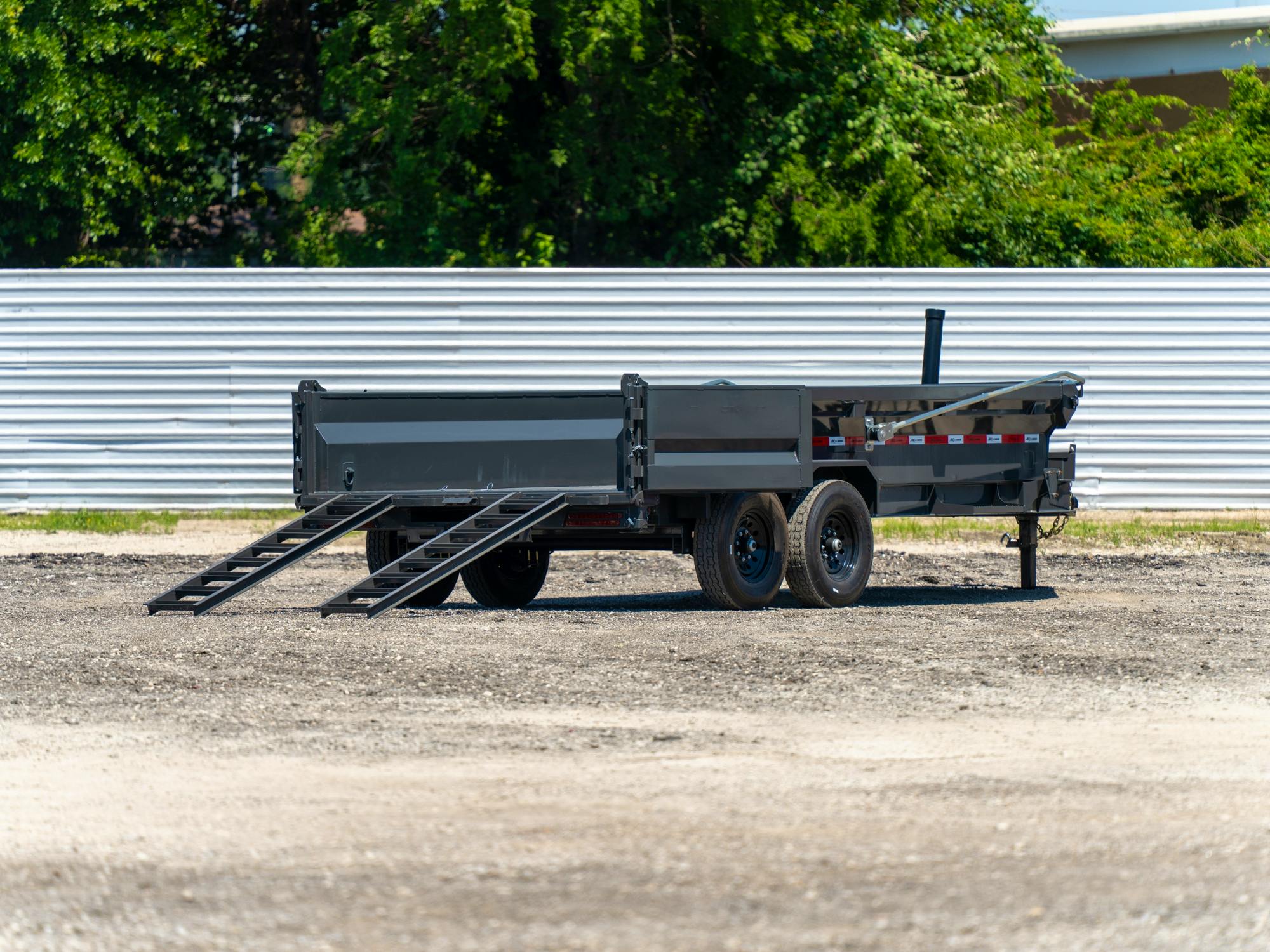

ARC Trailers ARC BDT 16' × 83" Telescopic Dump Trailer

Key specifications

GVWR: 14,000
Axle: Tandem
Length: 16ft
Width: 83 in

Explore this model

All specifications

ARC Trailers ARC BDT 16' × 83" Telescopic Dump Trailer

Specifications

GVWR

14,000

Axle

Tandem

Length

16ft

Width

83 in

Overview

GVWR: 14,000
GAWR: 7,000
Condition: New
Color: Grey
Make: ARC Trailers
Model: BDT
Model Code: A-BDT-16142-GYGY-D72BS-14P-ST2
Model Name: ARC BDT 16' × 83" Telescopic Dump Trailer
Axle Make: Dexter
Bed Material: Steel
Length: 16ft
Width: 83 in

Body

Tail: Straight Deck
Frame: I Beam
Frame Spec: 8" x 13lb I-Beam
Deck: 7 Gauge Steel Bed
Crossmembers: 9" Full Length Crossmembers 3/16"
Rail Height: 7 Gauge Steel
Side Height: 24"
Fenders: Smooth Steel
Wall Material: Steel
Wall Gauge: 10 ga
Bed Material: Steel
Floor Gauge: 7 ga
Coupler: Bumper Pull

Axles & Suspension

Axle Count: 2
Axle Make: Dexter
Axle Lube: Grease
Suspension: Slipper Spring
Brake: Electric Drum×2
Tires: 235 /80R16 14-ply
Wheels: 16" Black Steel

Electronics

Lighting: All LED Lighting

Features

Cargo: (4) Tiedown D-Rings

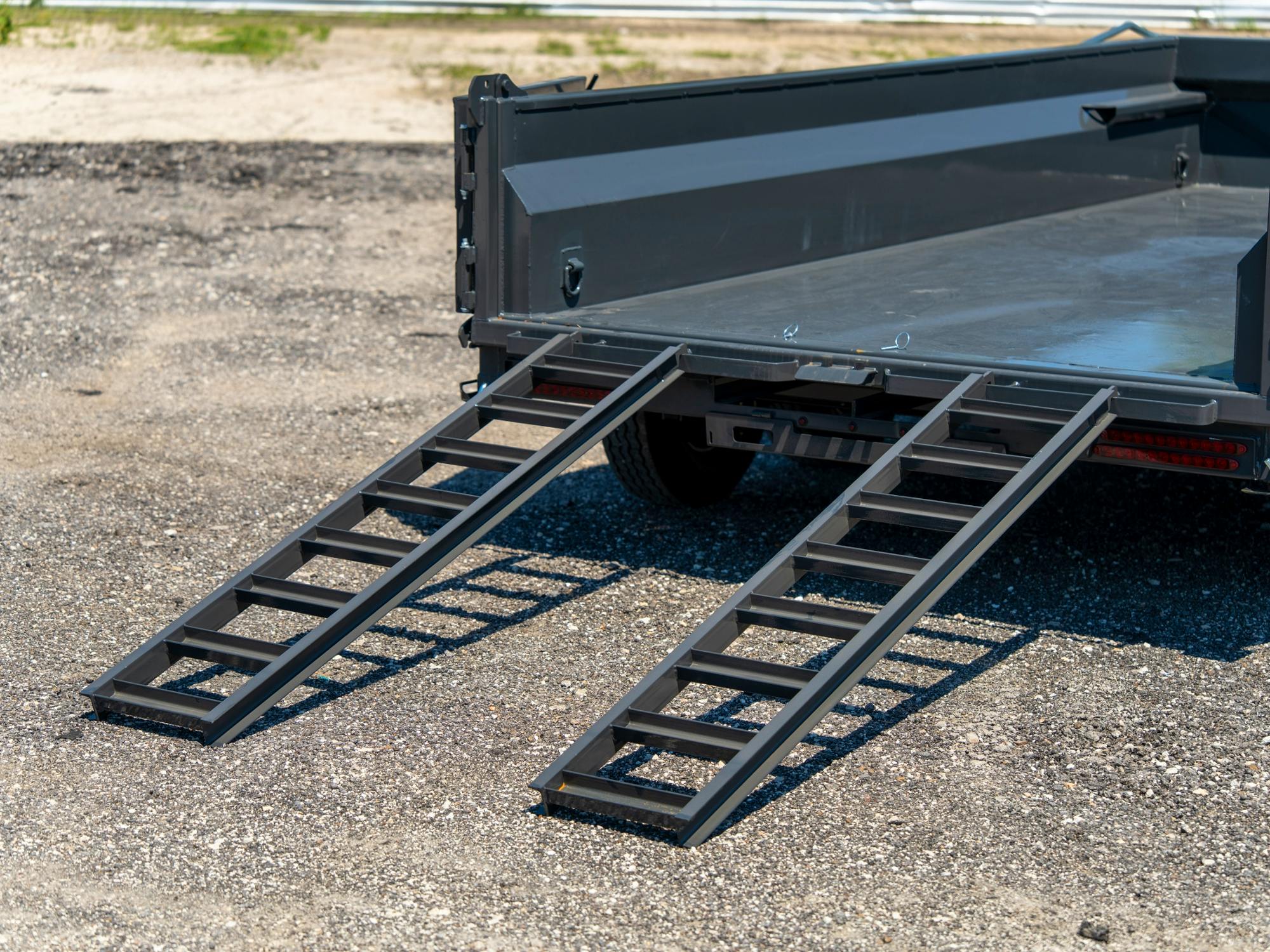

Rampgate: 2 -way Gate (Barn Doors & Spreader Gate), 78" Slide-in Ramps
Jack: 10,000 lb Drop Leg Jack×1

Safety Features

Electric Breakaway Kit w/ Charger

DOT Reflective/Conspicuity Tape

Additional Specifications

Electronics: Deep Cycle marine G27 Battery, All-Weather Wiring Harness (7-Way)
Equipment: 3 -Stage, 12 Ton Telescopic Cylinder

ARC Trailers ARC BDT 16' × 83" Telescopic Dump Trailer - Stock #91617 - Image 1 of 6

1 / 6

Use arrows or view fullscreen

★About This Trailer

Features

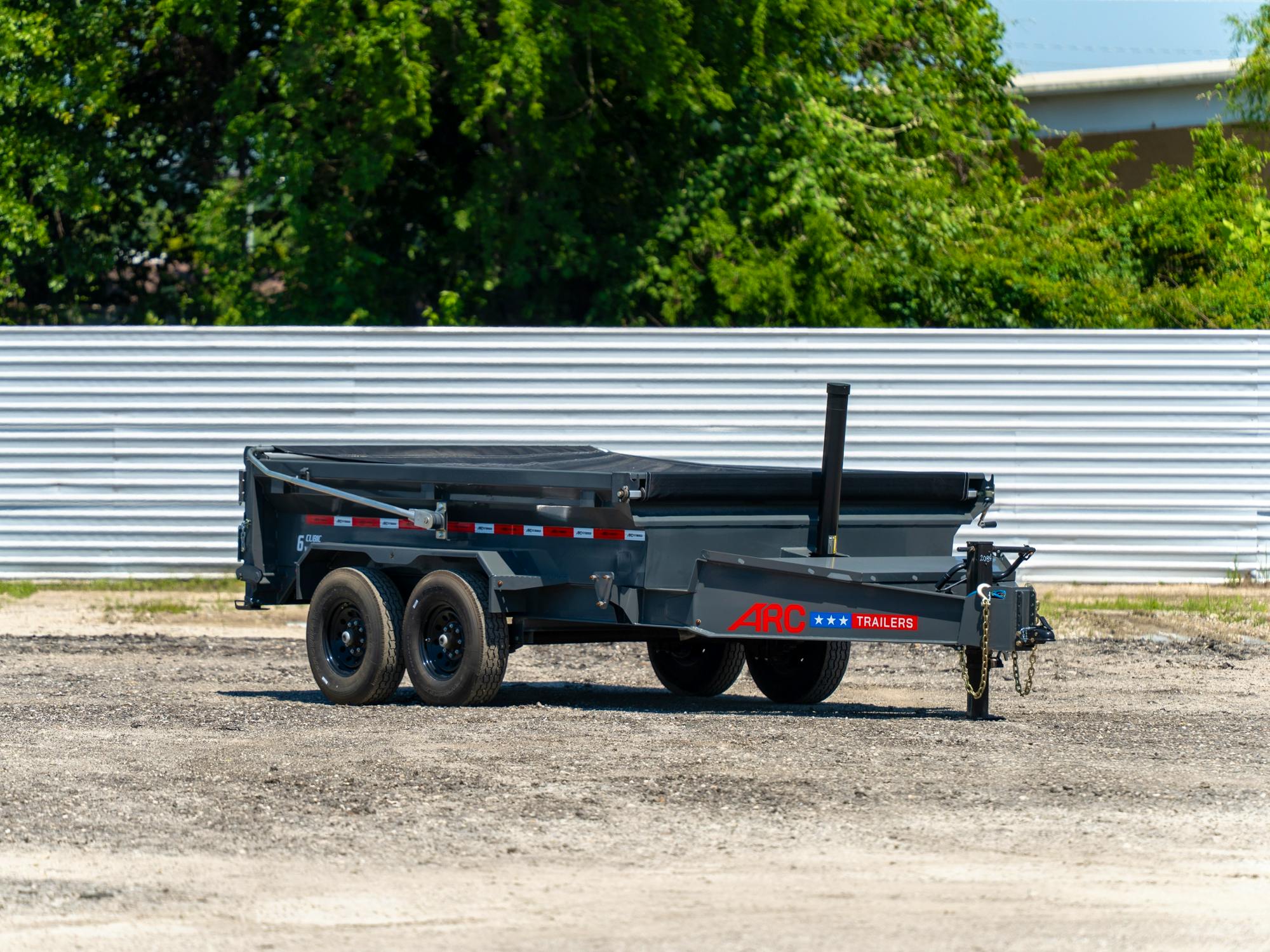

Long Arm Manual Tarp System
Bucket Rest
Rear Support Stands
Side Steps (both sides)

Options & Equipment

Spare Tired Included

Specifications

GVWR

14,000

Axle

Tandem

Length

16ft

Width

83 in

Overview

GVWR: 14,000
GAWR: 7,000
Condition: New
Color: Grey
Make: ARC Trailers
Model: BDT
Model Code: A-BDT-16142-GYGY-D72BS-14P-ST2
Model Name: ARC BDT 16' × 83" Telescopic Dump Trailer
Axle Make: Dexter
Bed Material: Steel
Length: 16ft
Width: 83 in

Body

Tail: Straight Deck
Frame: I Beam
Frame Spec: 8" x 13lb I-Beam
Deck: 7 Gauge Steel Bed
Crossmembers: 9" Full Length Crossmembers 3/16"
Rail Height: 7 Gauge Steel
Side Height: 24"
Fenders: Smooth Steel
Wall Material: Steel
Wall Gauge: 10 ga
Bed Material: Steel
Floor Gauge: 7 ga
Coupler: Bumper Pull

Axles & Suspension

Axle Count: 2
Axle Make: Dexter
Axle Lube: Grease
Suspension: Slipper Spring
Brake: Electric Drum×2
Tires: 235 /80R16 14-ply
Wheels: 16" Black Steel

Electronics

Lighting: All LED Lighting

Features

Cargo: (4) Tiedown D-Rings
Rampgate: 2 -way Gate (Barn Doors & Spreader Gate), 78" Slide-in Ramps
Jack: 10,000 lb Drop Leg Jack×1

Safety Features

Electric Breakaway Kit w/ Charger

DOT Reflective/Conspicuity Tape

Additional Specifications

Electronics: Deep Cycle marine G27 Battery, All-Weather Wiring Harness (7-Way)
Equipment: 3 -Stage, 12 Ton Telescopic Cylinder

Warranty

ARC Trailers

3-year main frame, 1-year components; axles by the axle maker.

Structural / frame · limited, original owner: 3 years
Components · non-wear parts (ramps, crossmembers): 1 year
Auxiliary parts · brakes, wheels, bearings, tires: By part maker

Original owner only

Full warranty All brand warranties
