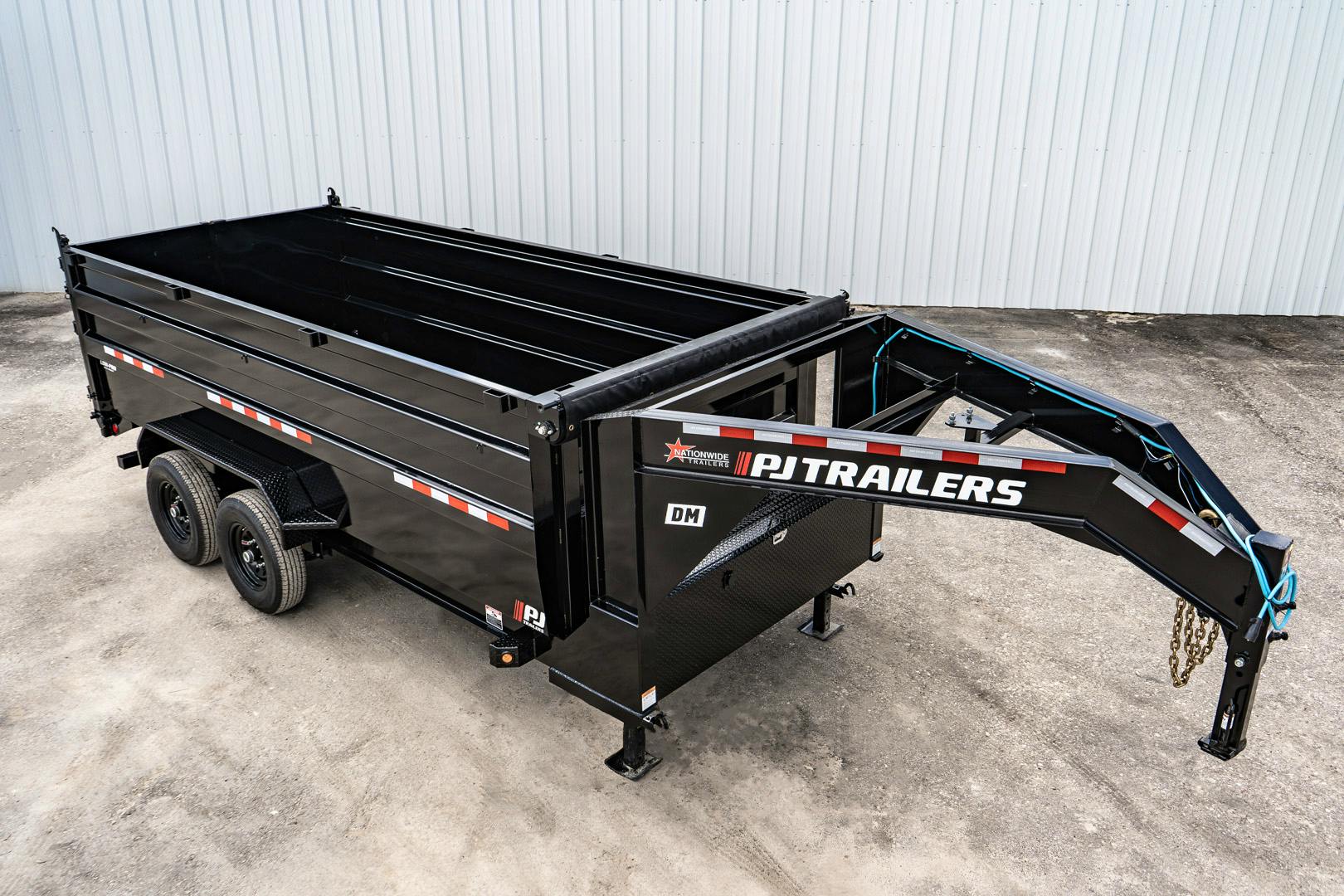

Name: PJ Trailers 16'x83" Low Pro High Side Dump Trailer w/ 4' Sides (DM)
Brand: PJ Trailers
SKU: DMS1672BSSK

In stock at 8 stores

ModelDMS1672BSSK

Model photos1 / 18

Model overview

PJ Trailers 16'x83" Low Pro High Side Dump Trailer w/ 4' Sides (DM)

Key specifications

GVWR: 15,680
Axle: Tandem
Length: 16ft
Width: 83 in

Explore this model

All specifications

PJ Trailers 16'x83" Low Pro High Side Dump Trailer w/ 4' Sides (DM)

Specifications

GVWR

15,680

Axle

Tandem

Length

16ft

Width

83 in

Overview

GVWR: 15,680
GAWR: 7,000
Condition: New
Color: Black
Make: PJ Trailers
Model: DM
Model Code: DMS1672BSSK
Model Name: 16'x83" Low Pro High Side Dump Trailer w/ 4' Sides (DM)
Bed Material: Steel
Length: 16ft
Width: 83 in

Body

Tail: Straight Deck
Frame: I Beam
Frame Spec: 8" x 10 lb. I-Beam Frame & Tongue
Deck: 7 GA Steel Bed
Deck Height: 28"
Crossmembers: 3" Channel 16" on Center
Side Height: 48"
Fenders: 1 /8" Treadplate Steel
Wall Material: 10 Gauge Steel
Bed Material: Steel
Floor Gauge: 10 ga

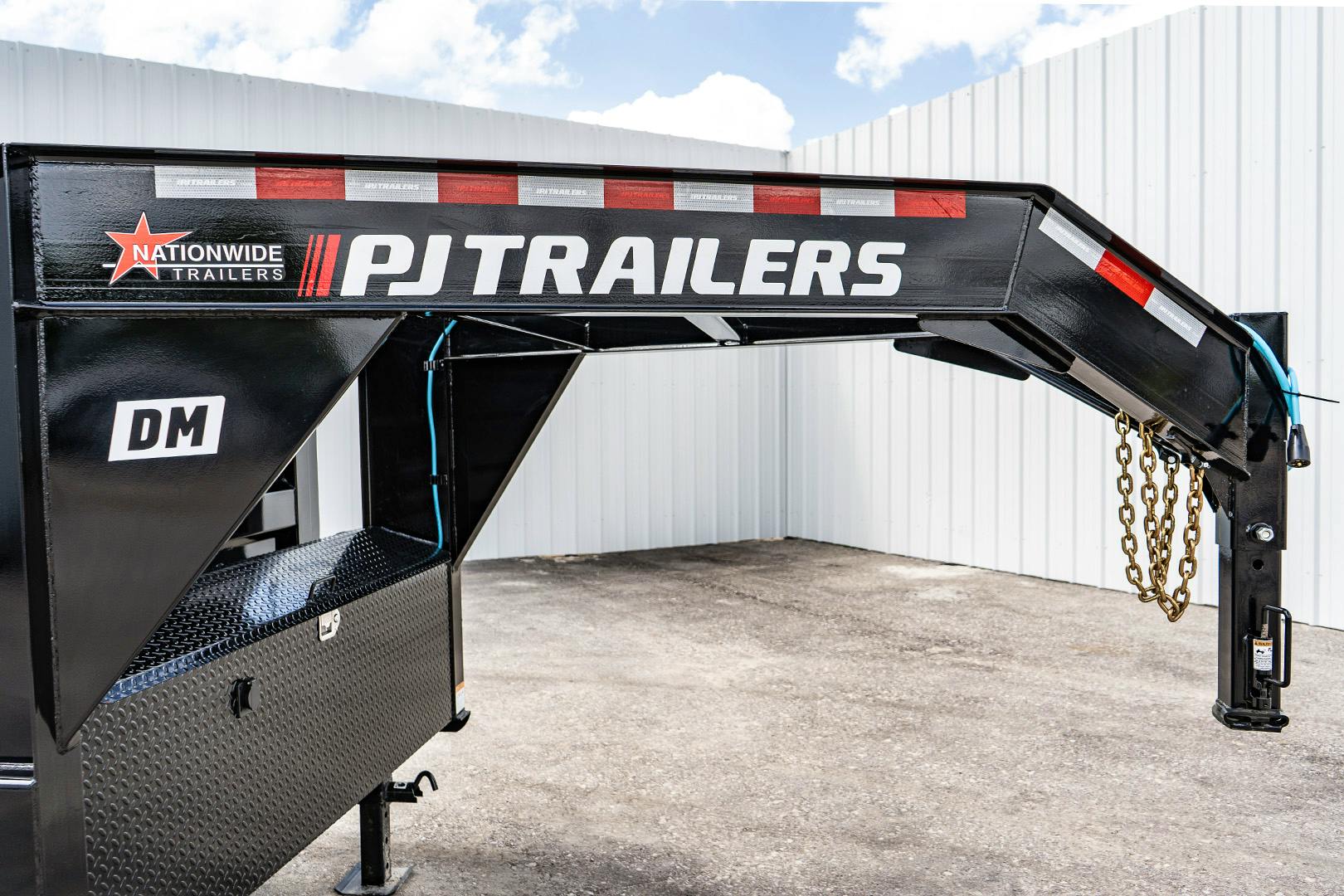

Coupler: Gooseneck

Axles & Suspension

Axle Count: 2
Axle Rating (each): 7,000 lb each

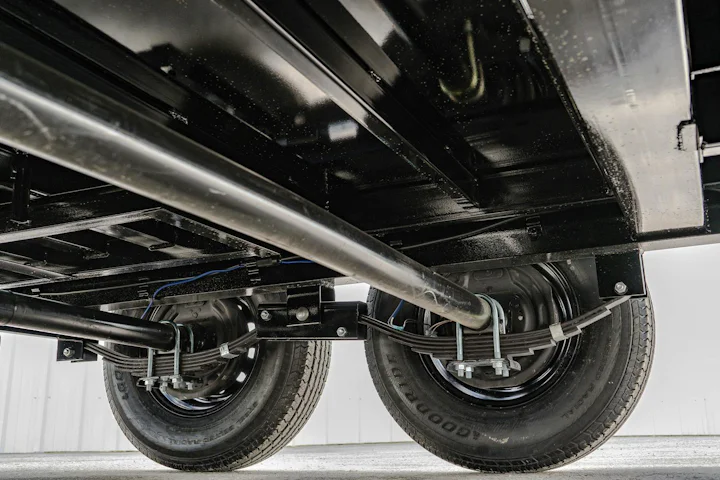

Suspension: 6 Leaf Slipper Spring Suspension
Brake: Electric Drum×2

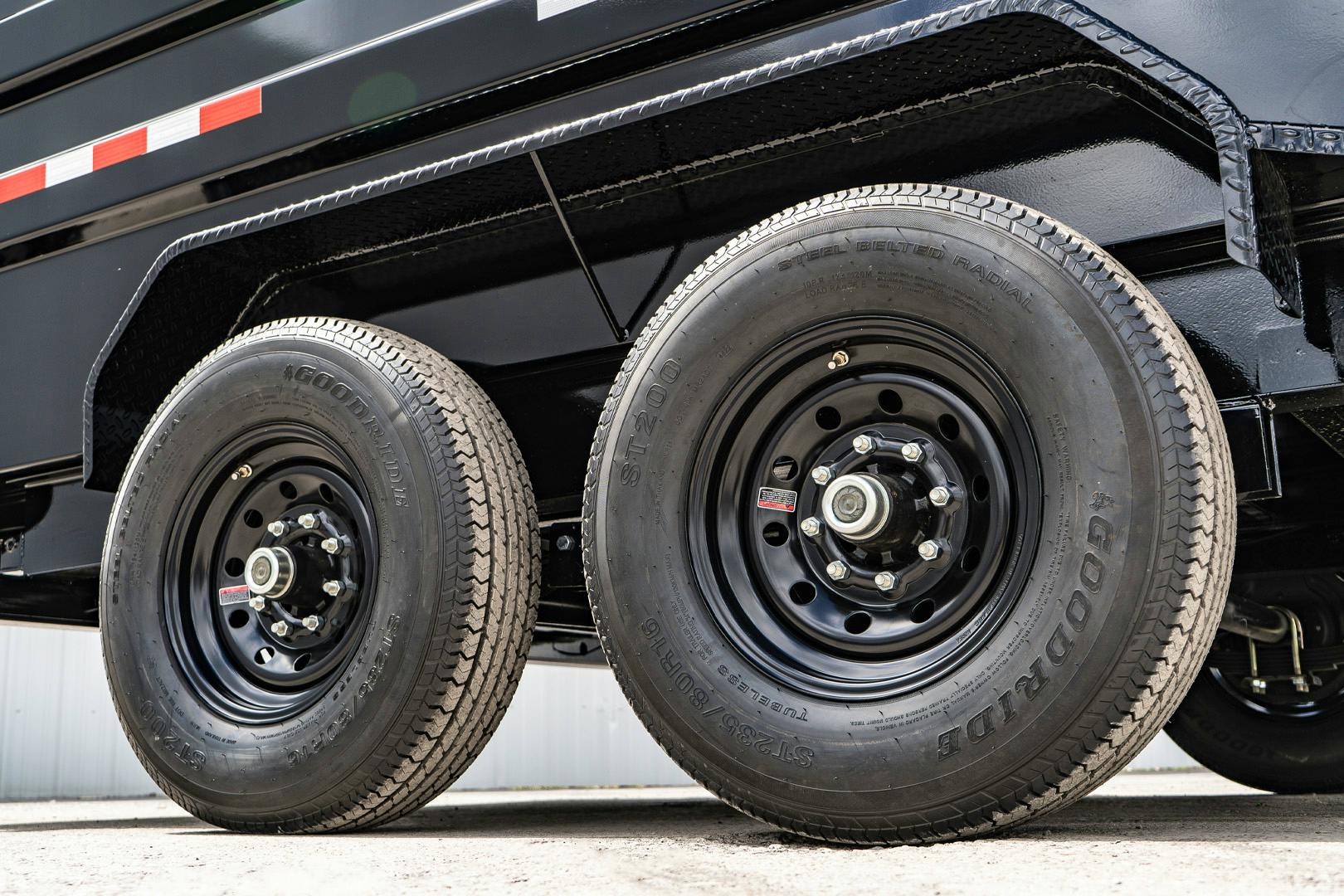

Tires: 235 /80R16×4

Electronics

Lighting: DOT Approved Flushmount Lifetime LED Lights

Features

Cargo: D Rings Welded Inside The Box×4

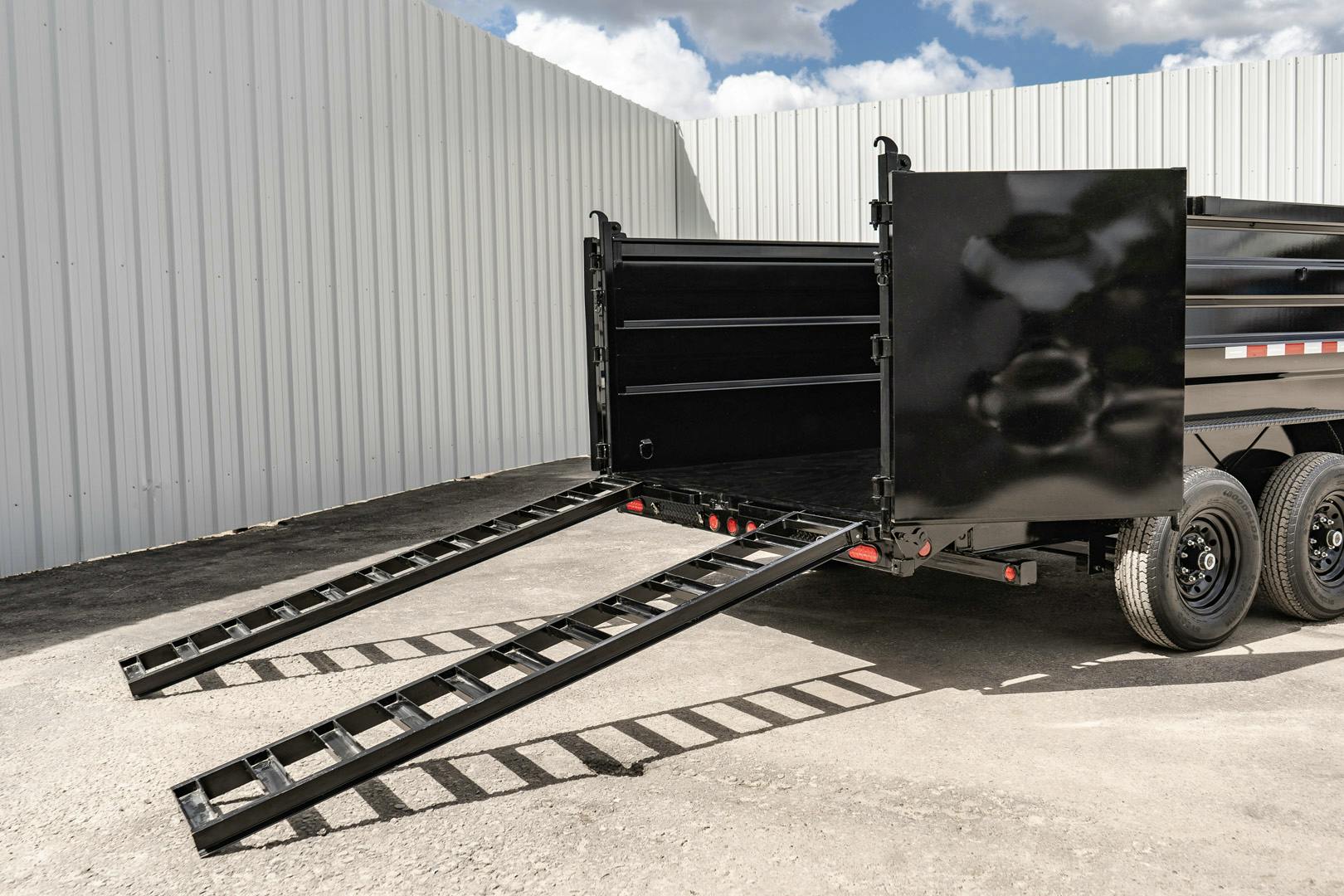

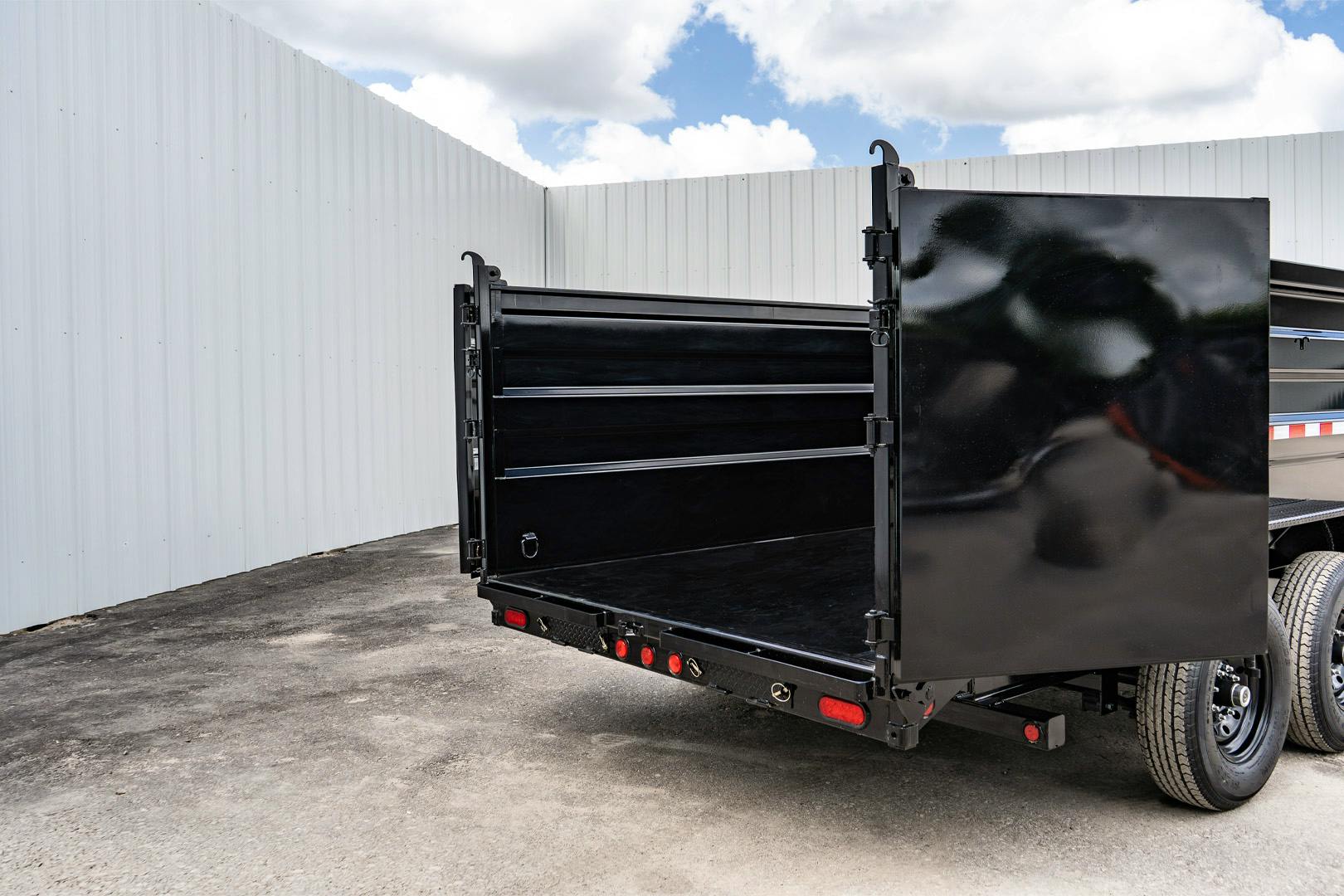

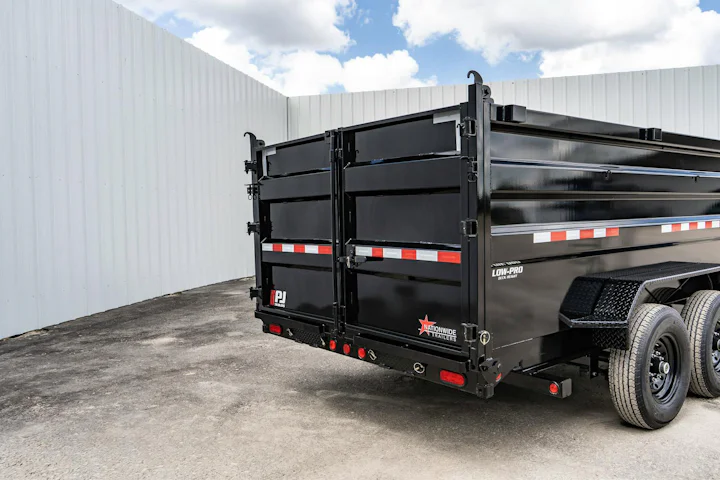

Rampgate: 6'6" Slide-In Channel Ramps, 2-Way Gate (Barn Doors & Spread Gate)
Jack: 10,000 lb Drop Leg Jack×2

Safety Features

Electric Breakaway Kit w/ Charger

Additional Specifications

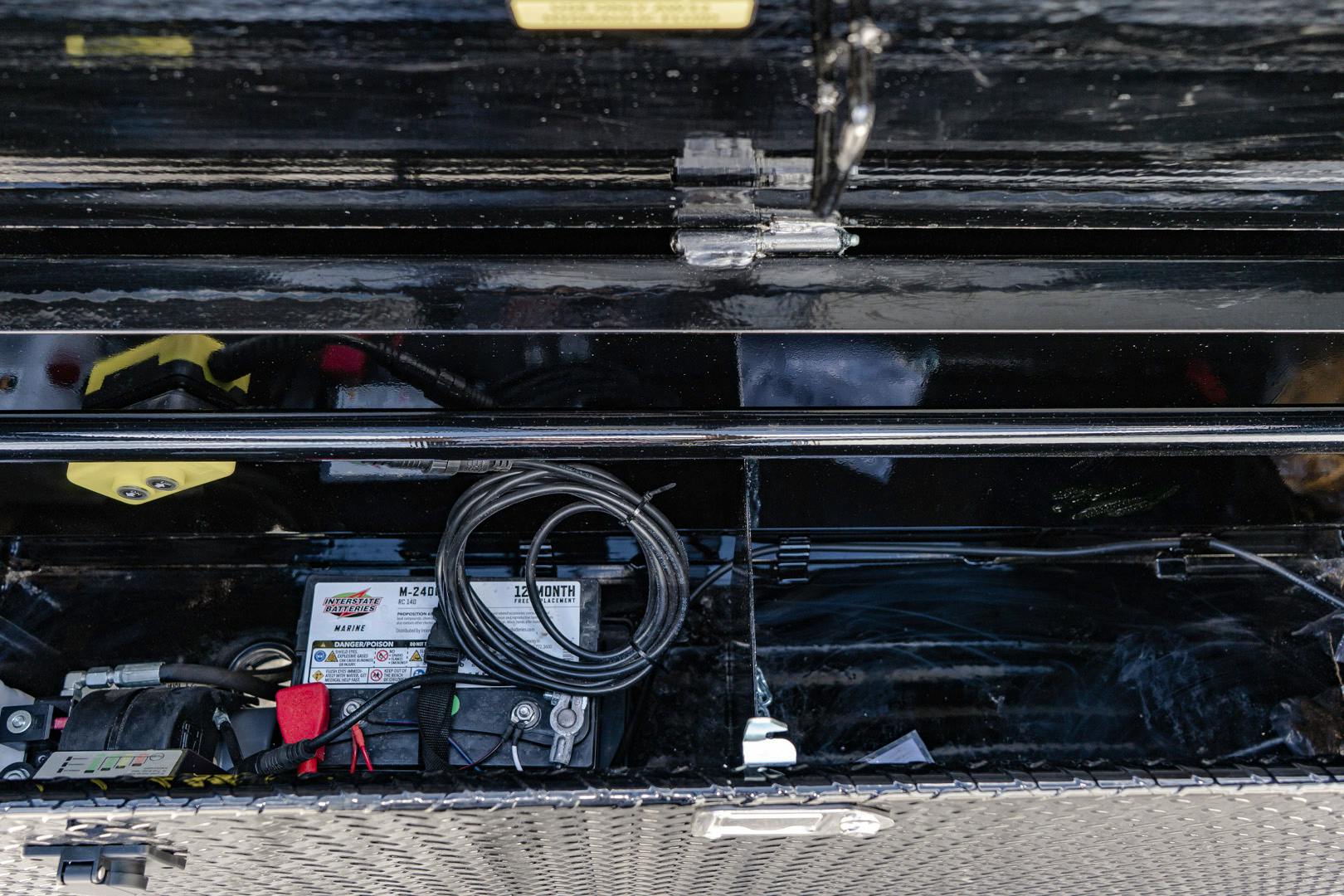

Electronics: Interstate (TM) Deep Cycle Battery, 110V Integrated Trickle Charger, Double Insulated Harness w/Cold Weather Cord 7-way

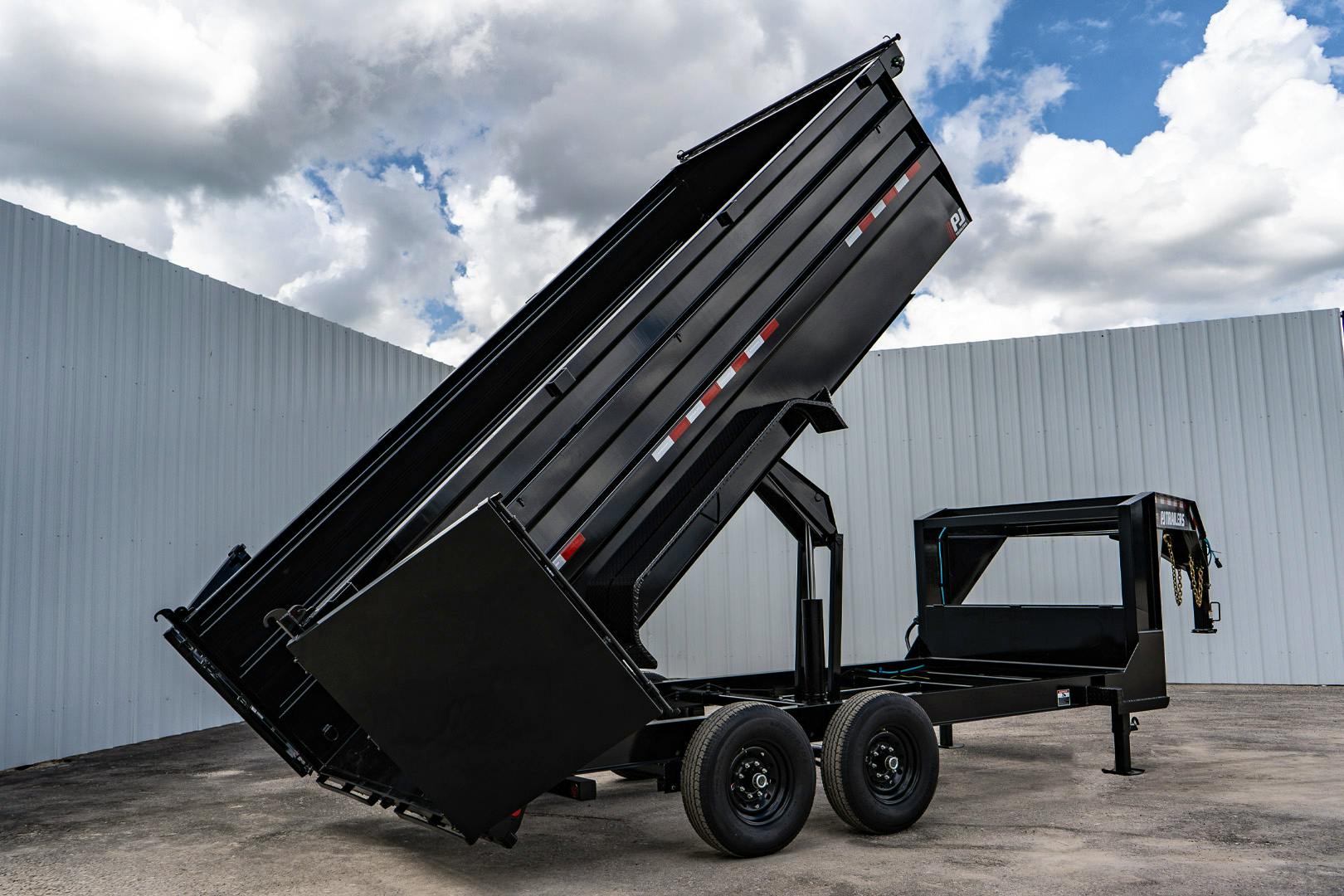

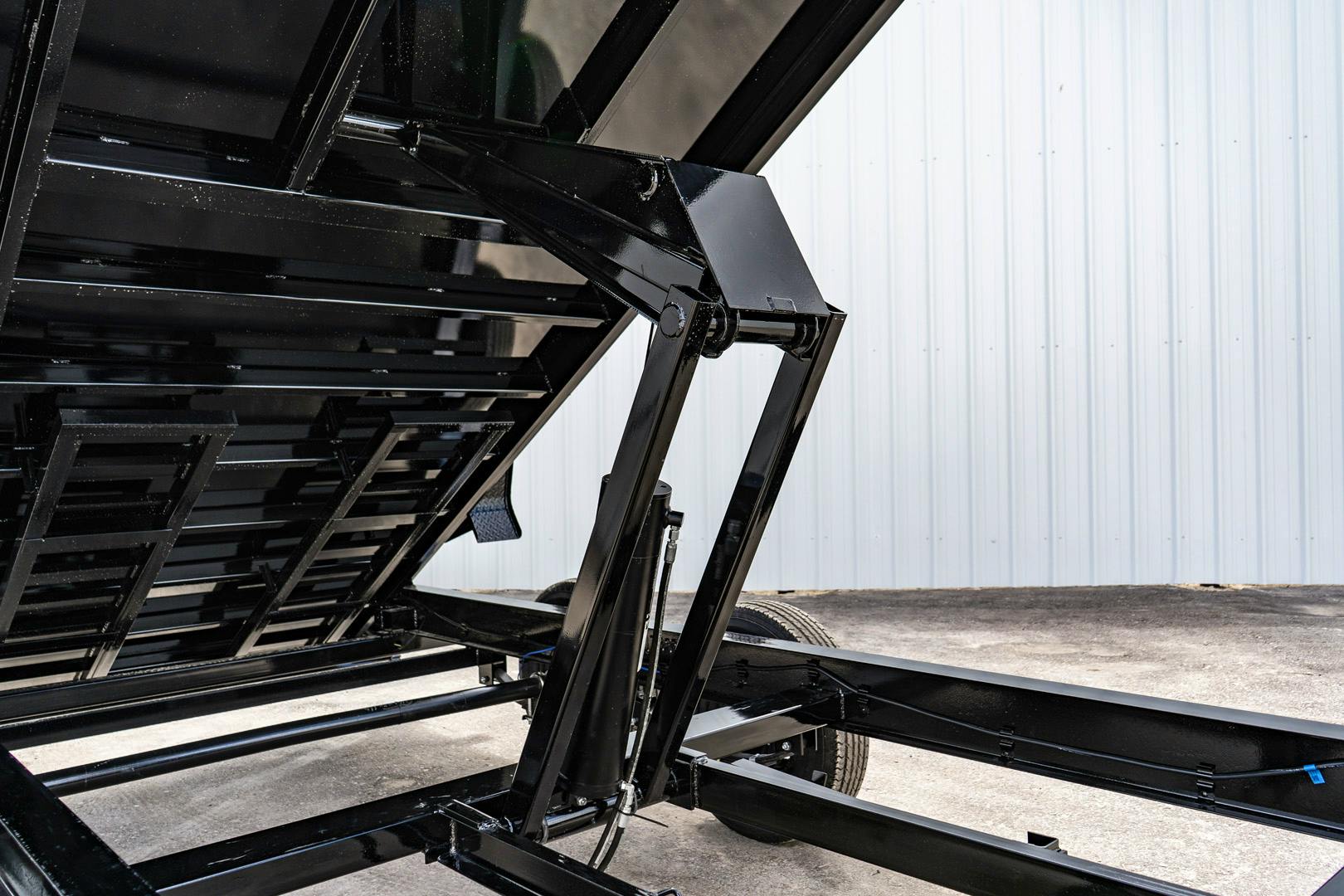

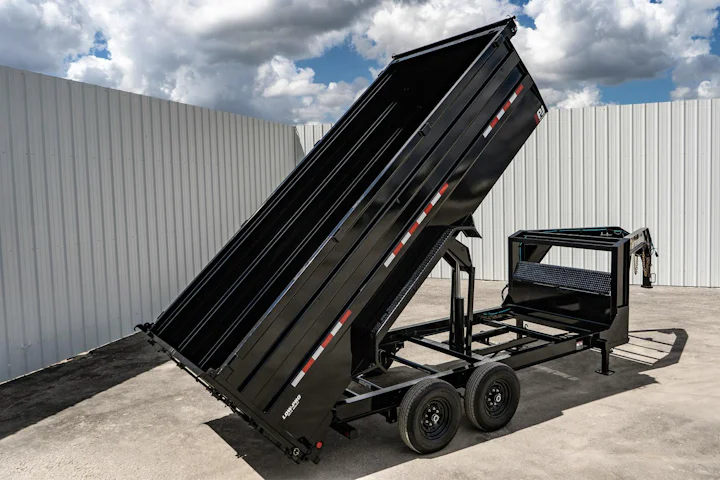

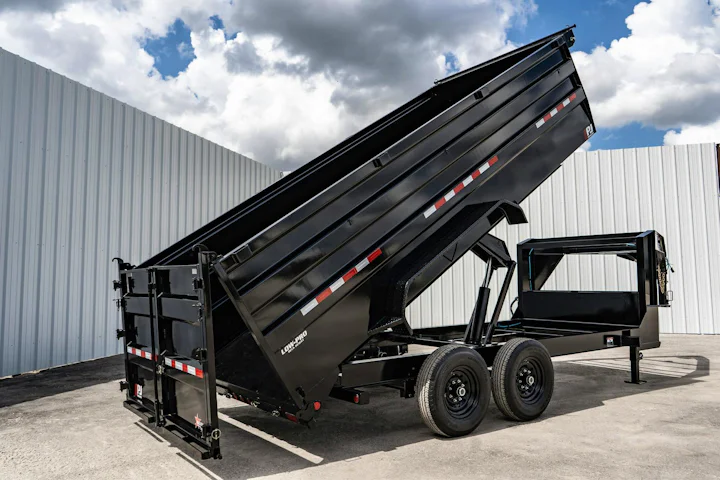

Equipment: 12 VDC Hydraulic Pump, 5"x17" Hyd.Cylinder w/Scissor & 5"x 21" on 16'
