ARC GDD Flatbed Trailer

Gooseneck Deckover w/ Duals

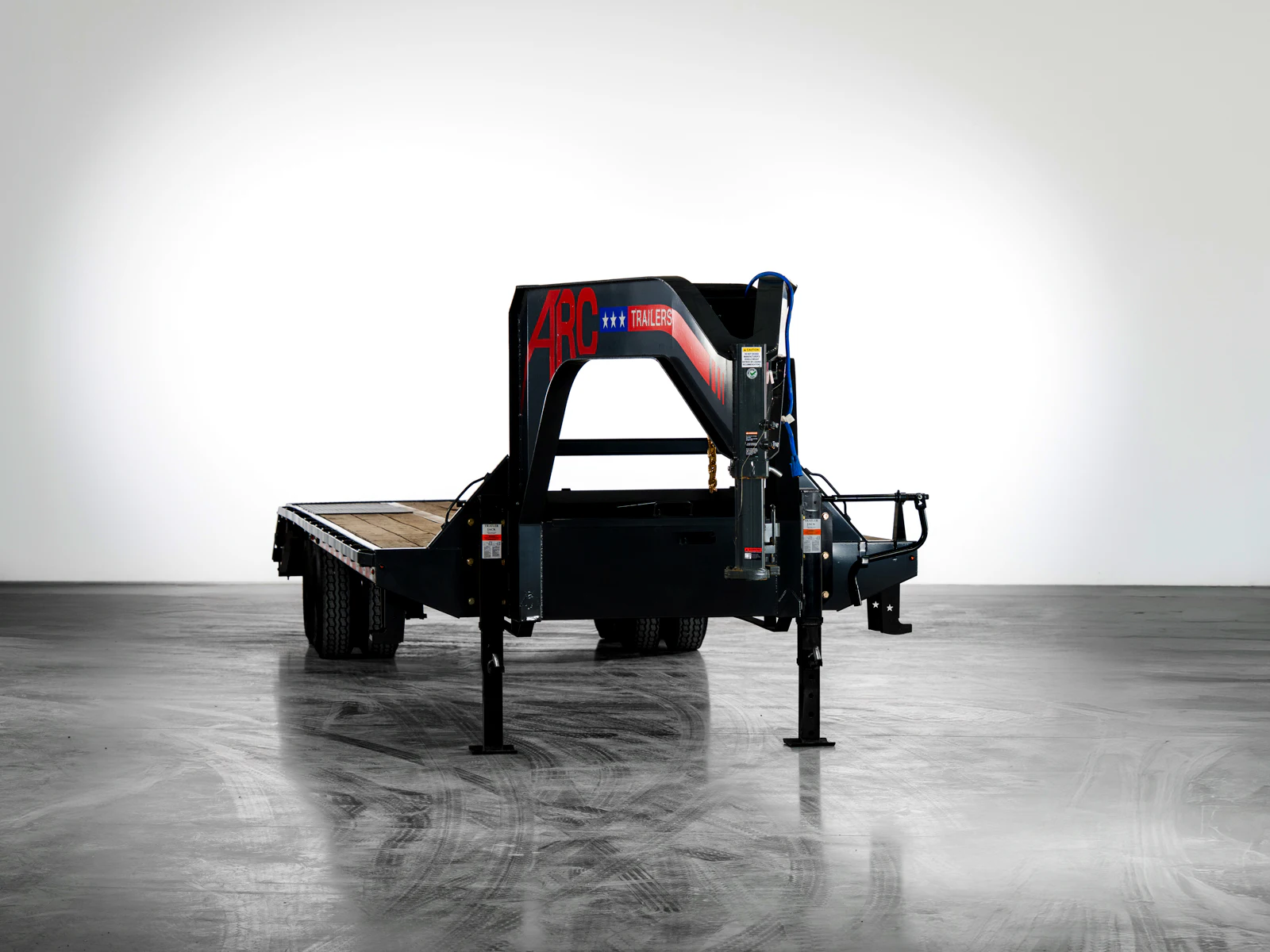

ARC Trailers Gooseneck Flatbed Trailer with Duals, studio view 1
1 / 19
Use arrows or view fullscreen

From$17,199

74 in stock at 11 locations

Dual-wheel gooseneck deckover, 12″ I-beam, 25,000 GVWR on 10k axles. 12k disc-brake axles available. Built for loaded machines and heavy freight over the road.

Model specifications

Deck length
25 ft–40 ft
Width
102 in
GVWR
25,000 lb–25,900 lb
Empty weight
6,614 lb–9,460 lb
Payload capacity
15,981 lb–18,386 lb
Axles
2
Axle rating
10,000 lb–12,000 lb each
Brakes
Electric drum / Electric-over-hydraulic disc
Suspension
Adjustable
Coupler
Gooseneck · 2 5/16 in ball
Tires
235/80R16
Jack
10,000 lb
Deck
2 in treated pine
Rear loading
5 ft dovetail with mega ramps / Straight deck with slide-in ramps

Best for

  • Heavy equipment
  • High volume
  • Commercial hauling

Weighing options? Compare flatbed trailers side by side →Ready to buy? Shop flatbed trailers for sale →

Warranty

ARC Trailers

3-year main frame, 1-year components; axles by the axle maker.

Structural / frame · limited, original owner
3 years
Components · non-wear parts (ramps, crossmembers)
1 year
Auxiliary parts · brakes, wheels, bearings, tires
By part maker

Original owner only

Full warranty Register All brand warranties

Configure & locate

Choose a configuration

Length · axle and brake package · rear loading

$26,399
Special$22,998
GDD · 40 ft · 2 × 12K axles · EOH disc brakes · 5 ft dovetail + mega ramps
GVWR
25,900 lb
In stock
16 trailers

Availability · 14 locations

See all 74 GDD trailers across 11 locations →
