Nationwide Trailers

PJ Trailers

PJ LD Flatbed Trailer

Low-Pro Gooseneck w/ Duals

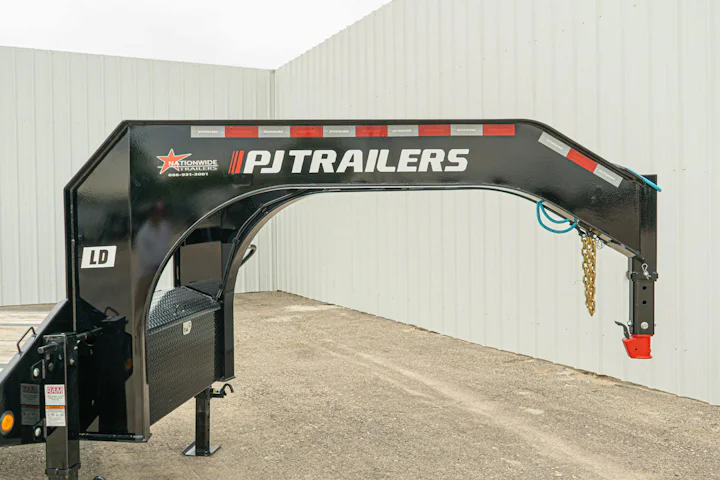

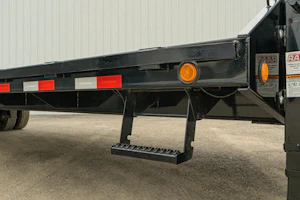

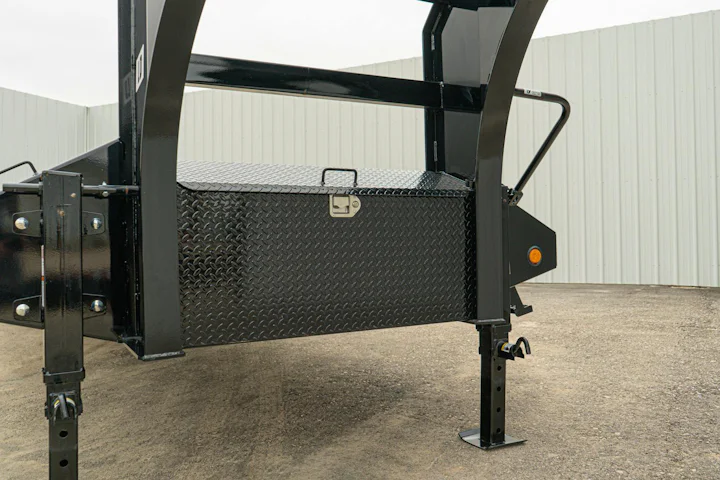

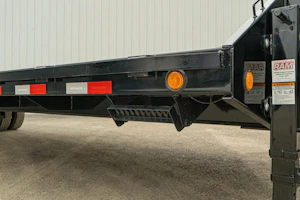

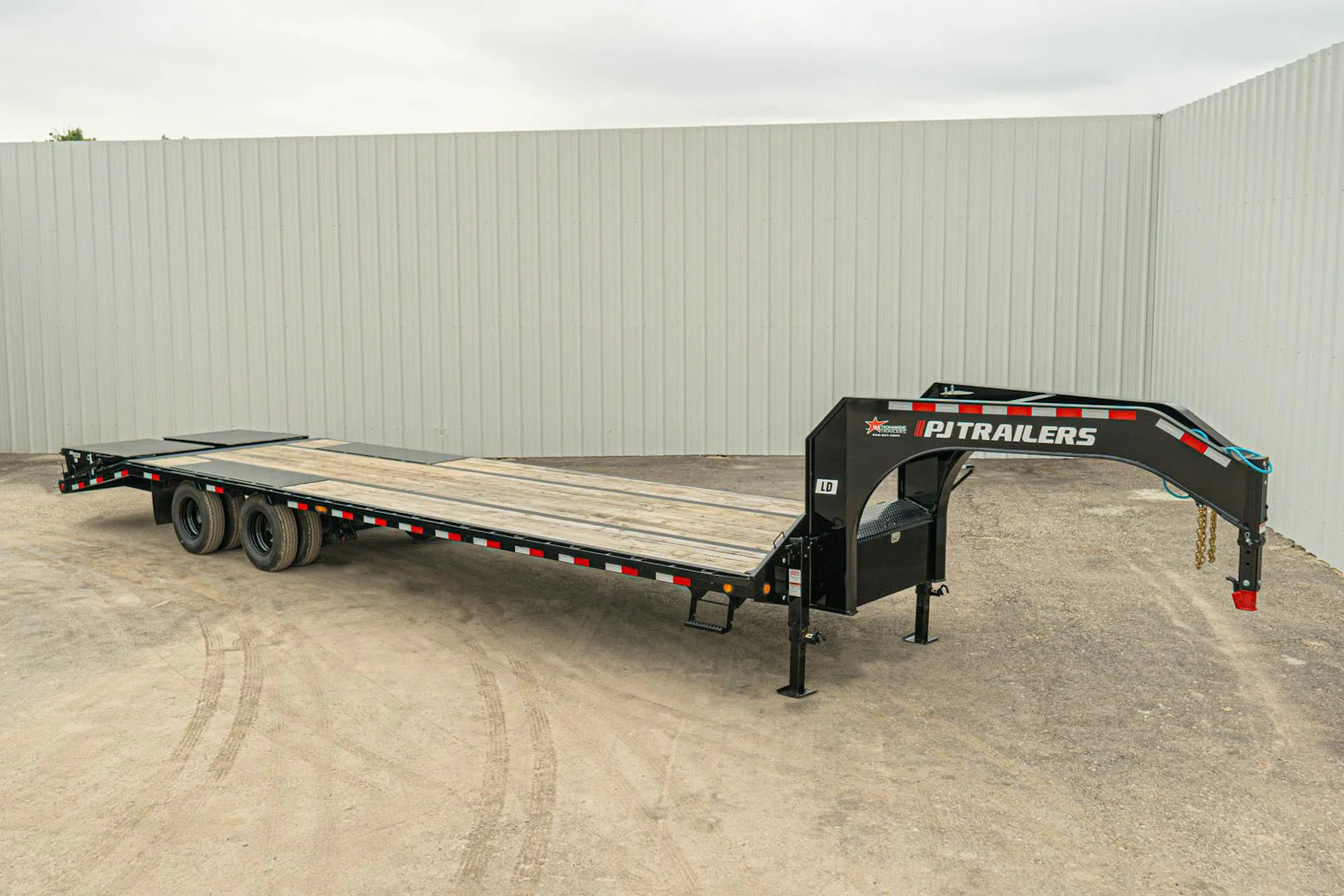

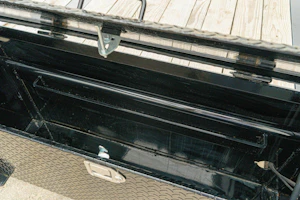

PJ LD low-profile gooseneck flatdeck trailer on transparent background
Use arrows or view fullscreen

Representative PJ LD image; length, GVWR, deck equipment, and installed options may vary.

From$18,599

14 in stock at 9 locations

Low-pro dual-wheel deck on 10k axles, up to 25,900 GVWR. The hot-shot favorite for heavy equipment and long hauls where you need the extra rating.

Model specifications

Deck length
32 ft–40 ft
Width
102 in
GVWR
25,000 lb–25,900 lb
Empty weight
7,590 lb–9,130 lb
Payload capacity
16,770 lb–17,410 lb
Axles
2
Axle rating
10,000 lb–12,000 lb each
Brakes
Electric drum / Electric-over-hydraulic disc
Suspension
Adjustable
Coupler
Gooseneck · 2 5/16 in ball
Tires
235/80R16
Jack
10,000 lb–25,000 lb
Deck
2 in treated pine deck
Rear loading

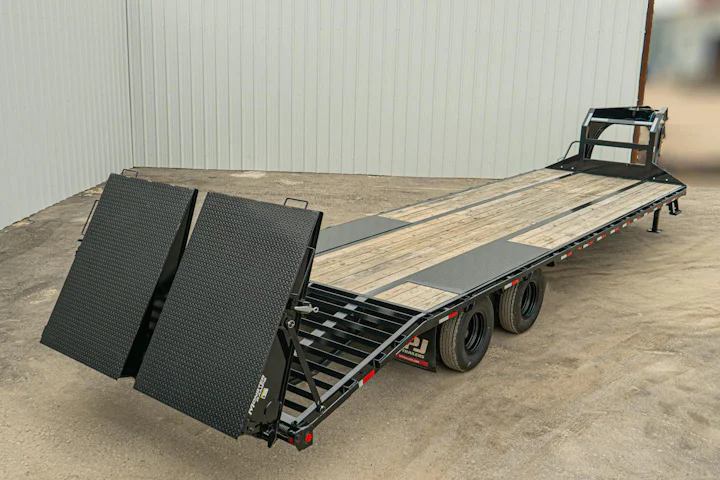

5 ft dovetail with Monster ramps

Best for

  • Heavy equipment
  • Hot-shot
  • Long haul

Weighing options? Compare flatbed trailers side by side →Ready to buy? Shop flatbed trailers for sale →

Warranty

PJ Trailers

3-year main frame, 1-year limited; axles by the axle maker.

Structural / frame · main frame; ramps/rails 1 yr
3 years
Components · non-wearing items
1 year
Full warranty Register All brand warranties
