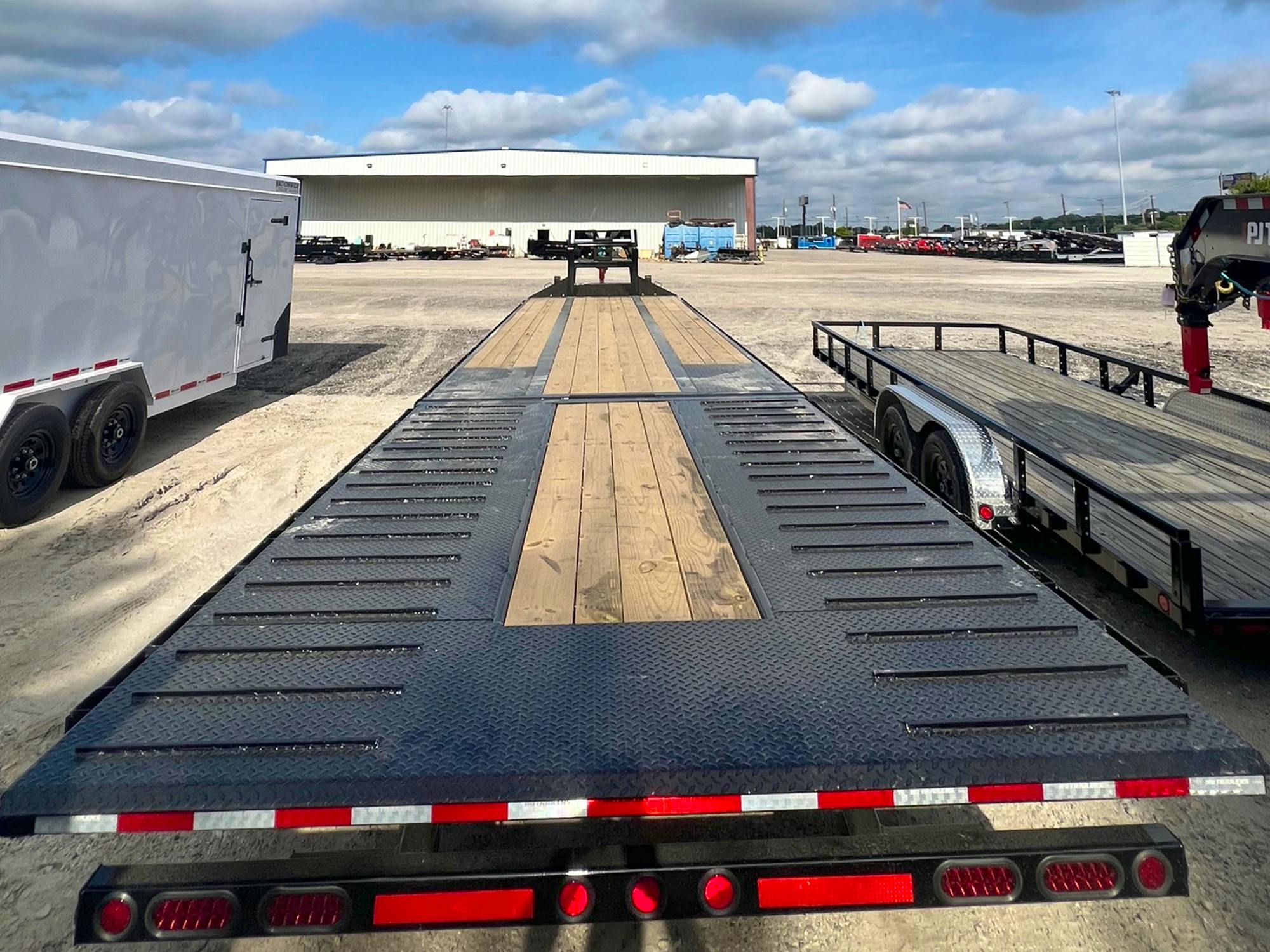

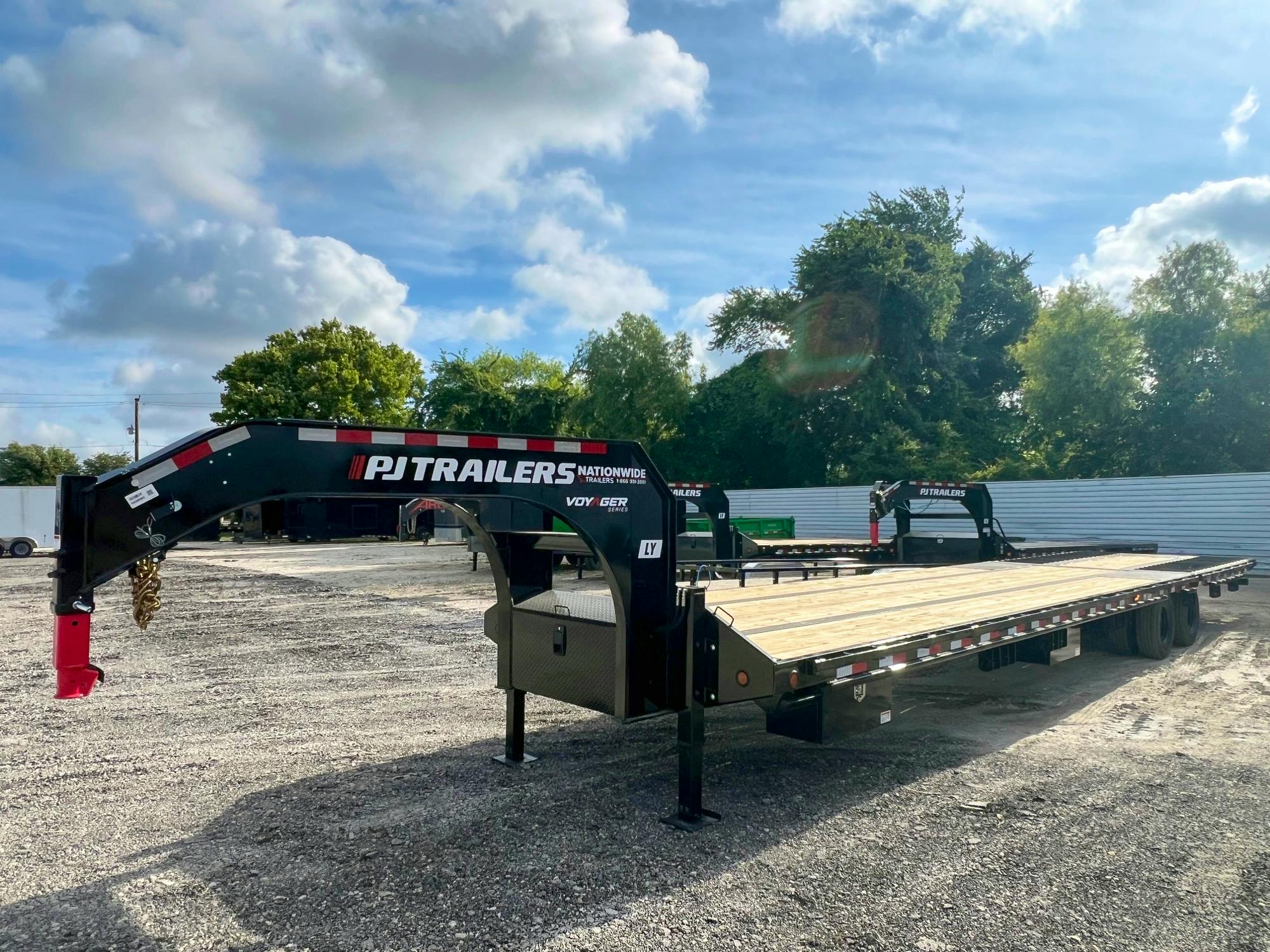

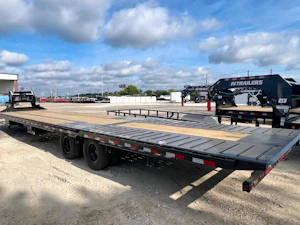

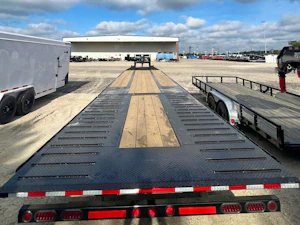

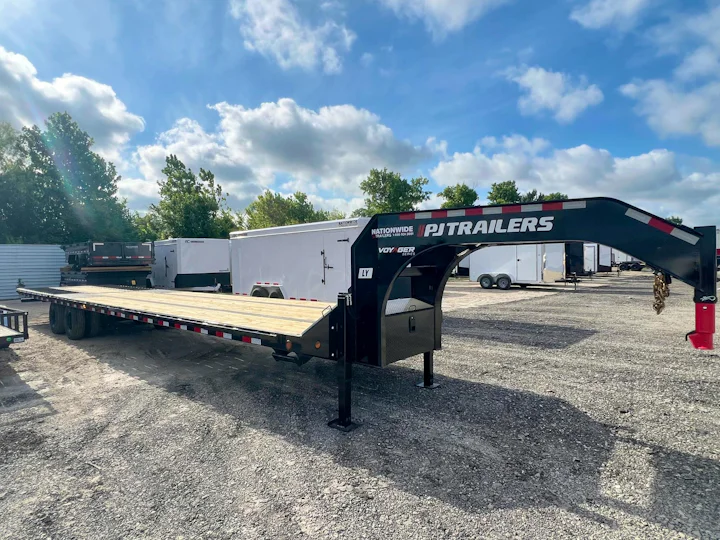

PJ LY1 Flatbed Trailer

Voyager Hydraulic Dovetail Gooseneck

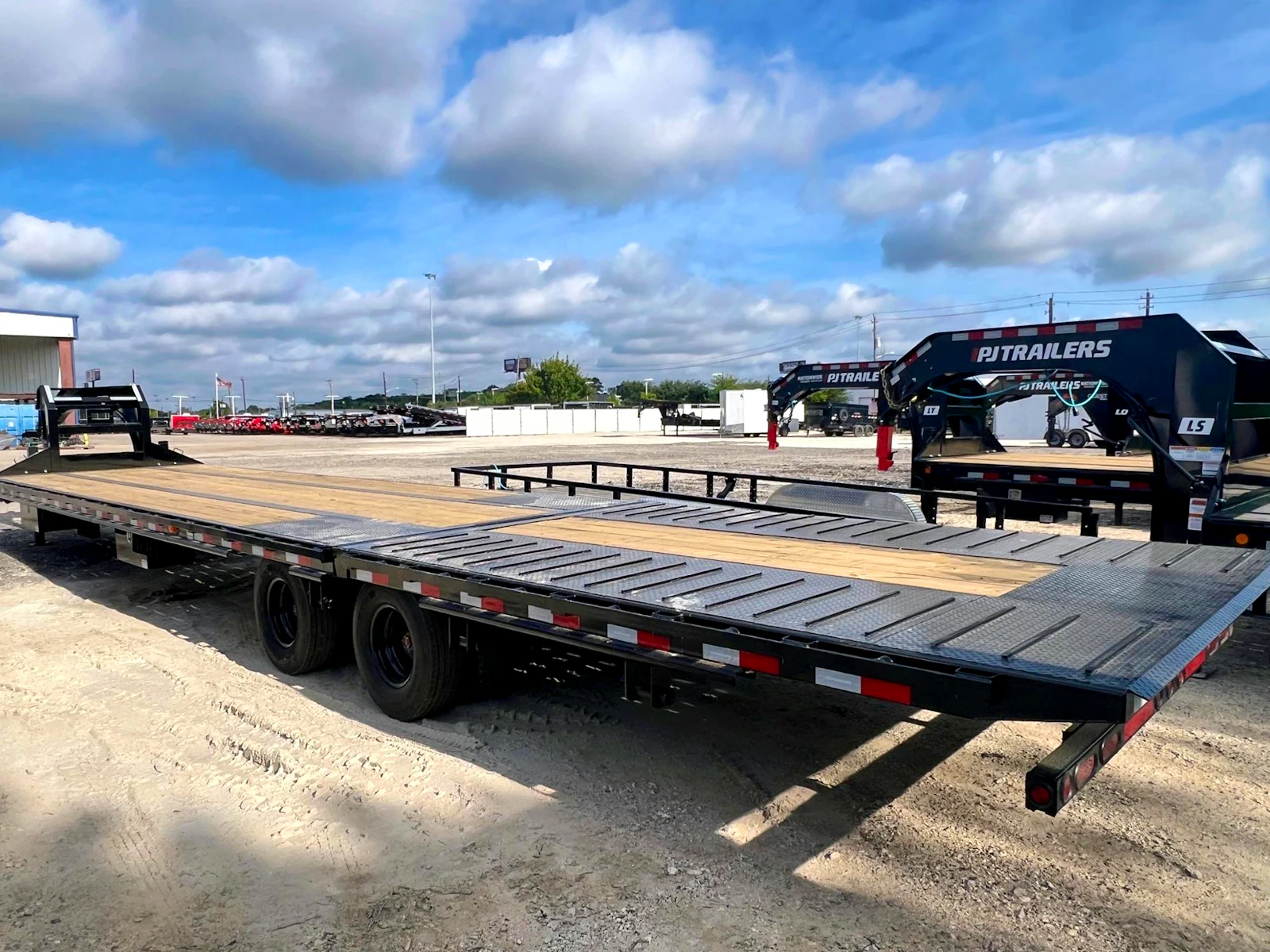

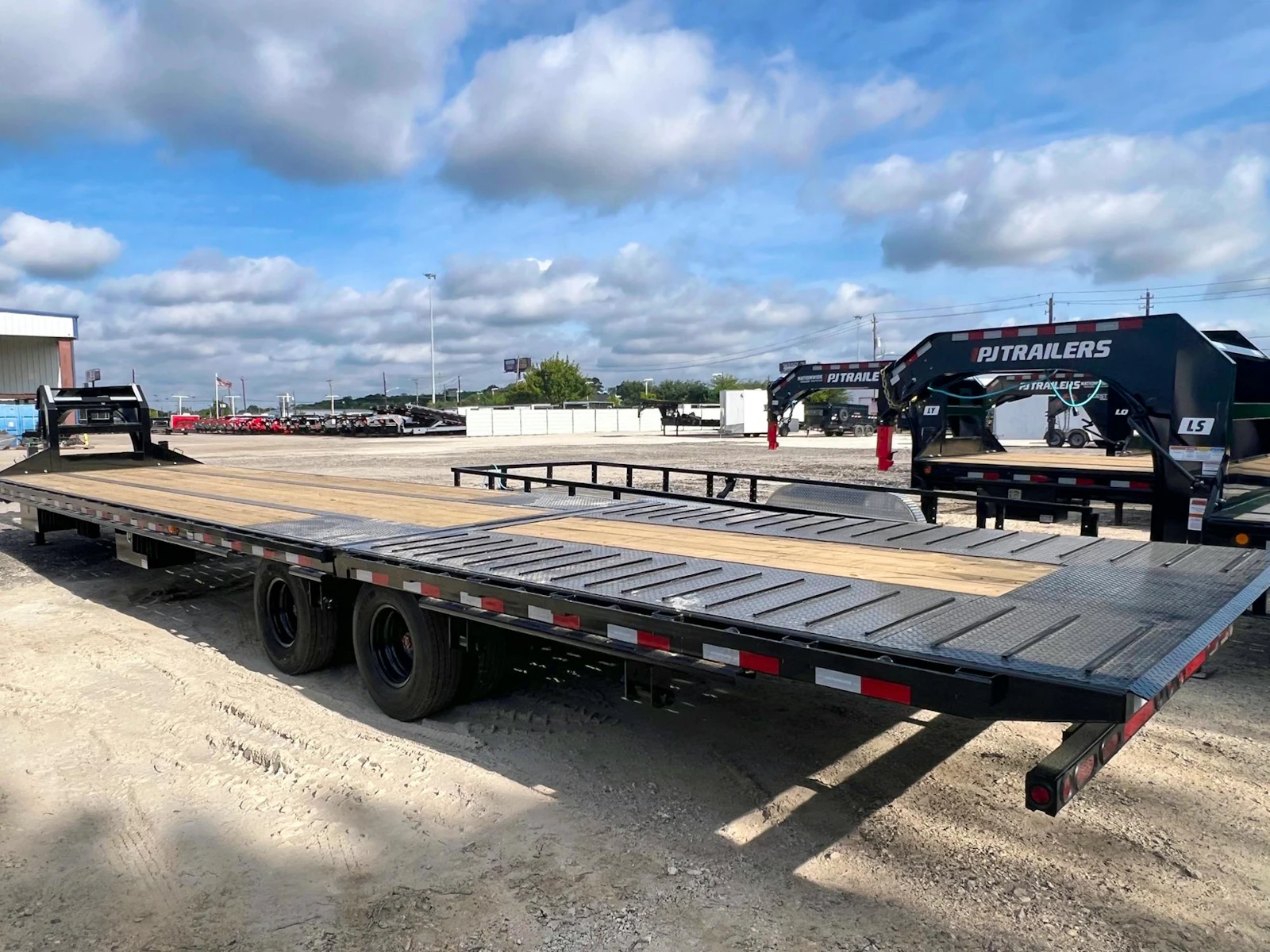

PJ Trailers LY1, gallery image 1
1 / 4
Use arrows or view fullscreen

From$29,999

10 in stock at 9 locations

Heavy gooseneck flatdeck with a powered hydraulic dovetail on 12k axles. Loads low equipment at a flat angle, then folds up for full deck length hauling.

Model specifications

Deck length
40 ft
Width
102 in
GVWR
25,900 lb
Empty weight
10,860 lb
Payload capacity
15,040 lb
Axles
2
Axle rating
12,000 lb each
Brakes
Electric-over-hydraulic disc
Suspension
Slipper spring
Coupler
Gooseneck · 2 5/16 in ball
Tires
235/80R16
Deck
2 in treated pine
Rear loading
10 ft hydraulic dovetail

Best for

  • Low equipment
  • Heavy iron
  • Commercial hauling

Weighing options? Compare flatbed trailers side by side →Ready to buy? Shop flatbed trailers for sale

Warranty

PJ Trailers

3-year main frame, 1-year limited; axles by the axle maker.

Structural / frame · main frame; ramps/rails 1 yr
3 years
Components · non-wearing items
1 year
