PJ LX Flatbed Trailer

8K-Axle Low-Pro Gooseneck

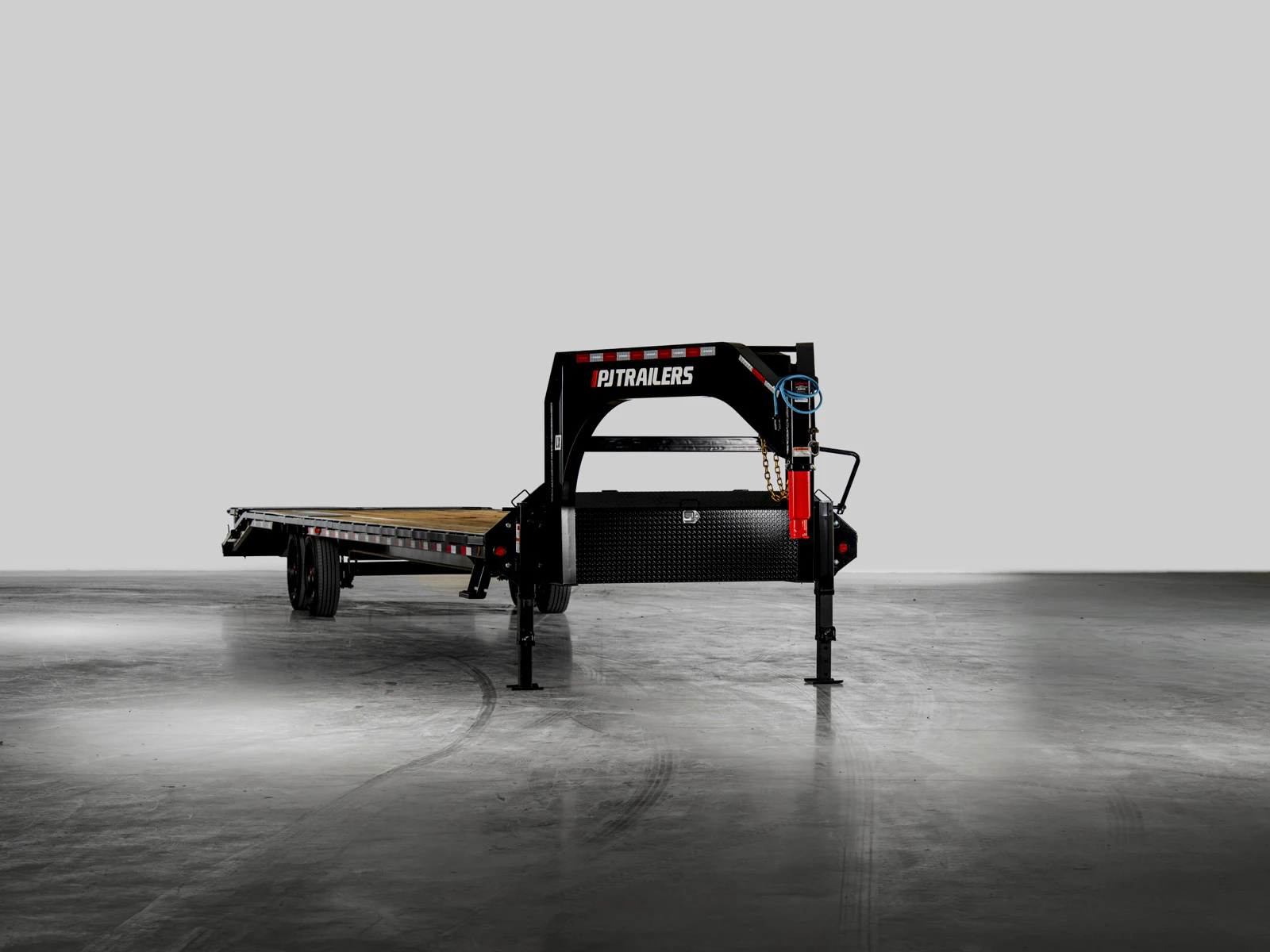

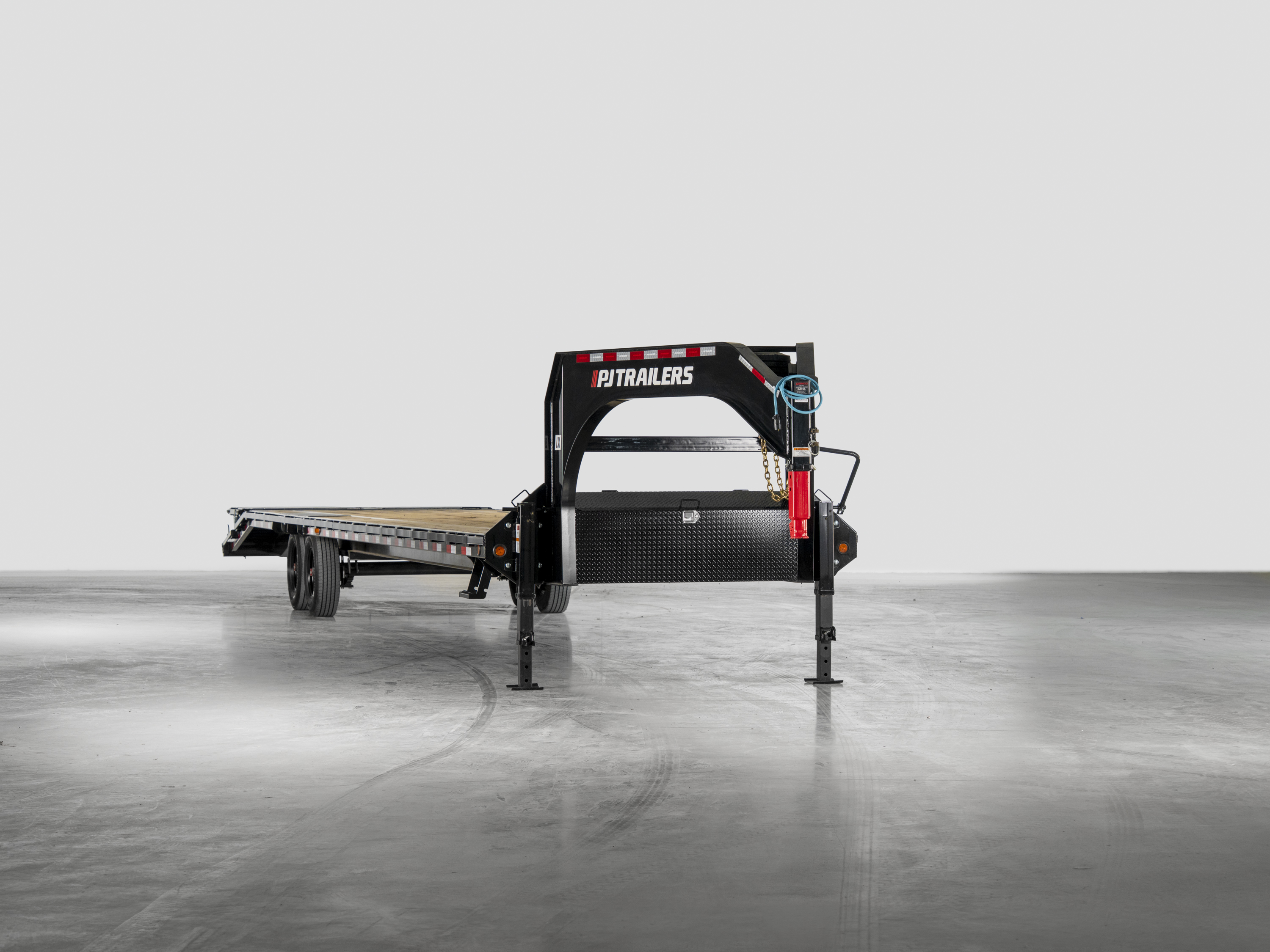

PJ Trailers Low-Pro Flatdeck With 8K Singles, studio view 1
1 / 18
Use arrows or view fullscreen

From$15,599

14 in stock at 5 locations

Low-pro single-wheel on 8k axles for the top of the non-dual range. More capacity for long freight and heavier equipment while staying single-wheel.

Model specifications

Deck length
40 ft
Width
102 in
GVWR
15,000 lb–18,000 lb
Empty weight
6,790 lb–7,050 lb
Payload capacity
7,950 lb–11,210 lb
Axles
2
Axle rating
8,000 lb each
Brakes
Electric drum

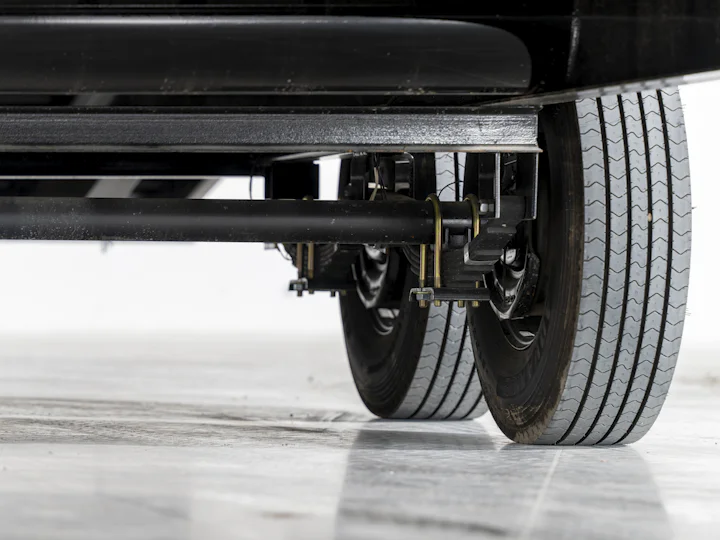

Suspension
Slipper spring

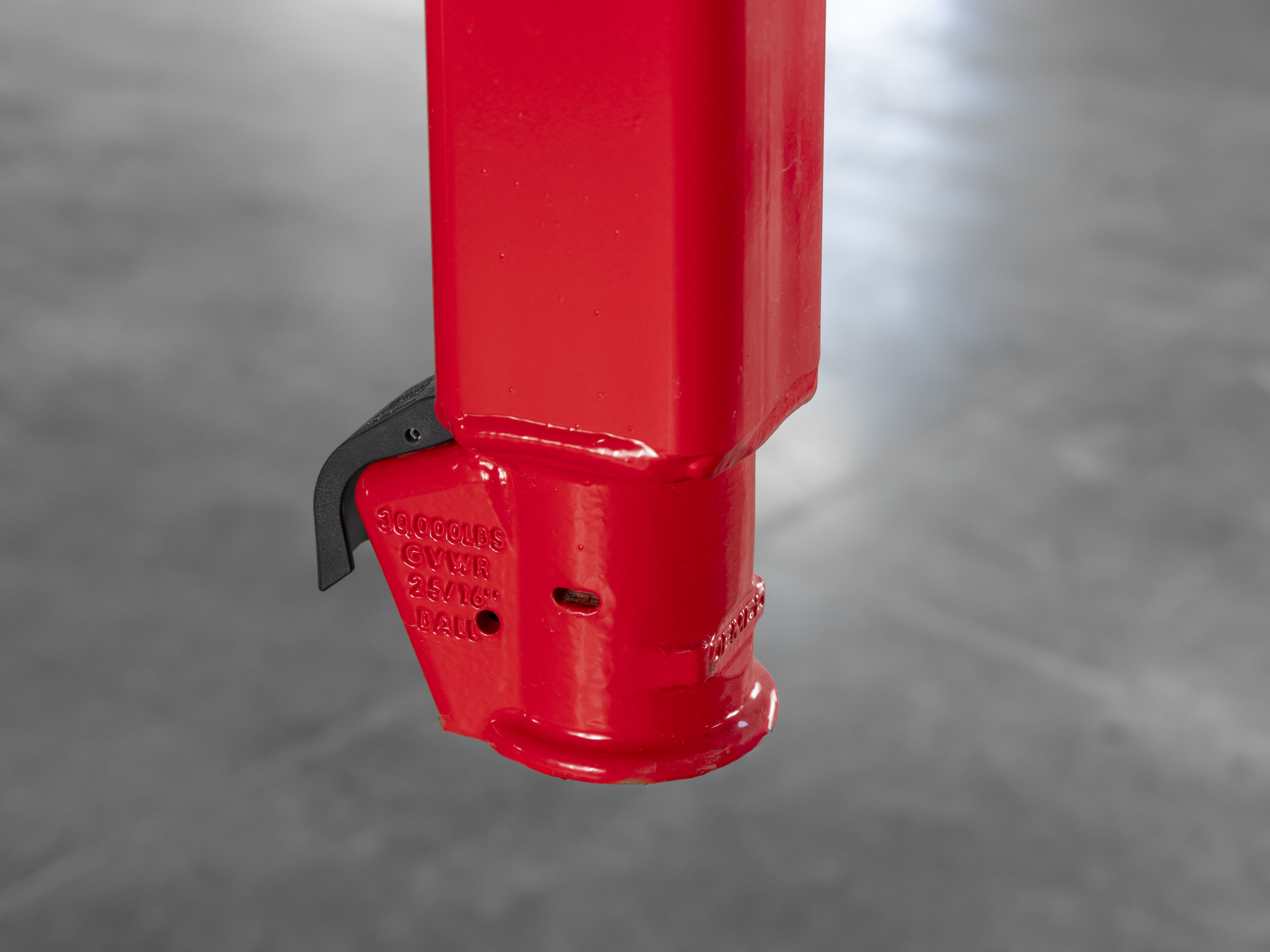

Coupler

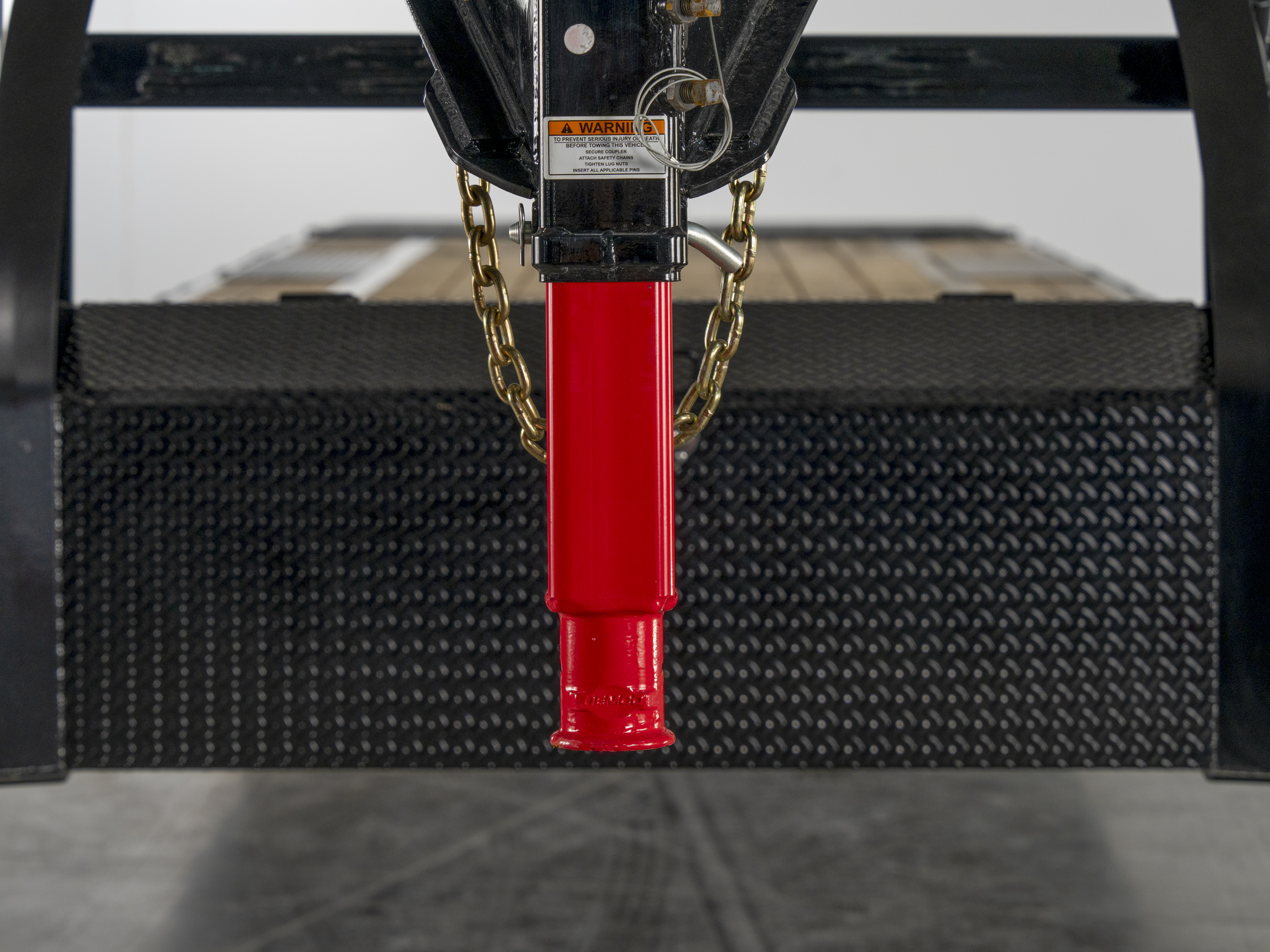

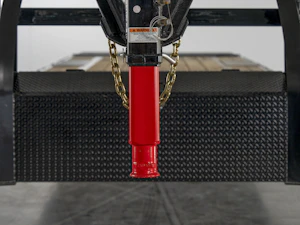

Gooseneck · 2 5/16 in ball
Tires
235/80R16
Jack
10,000 lb
Deck
2 in treated pine

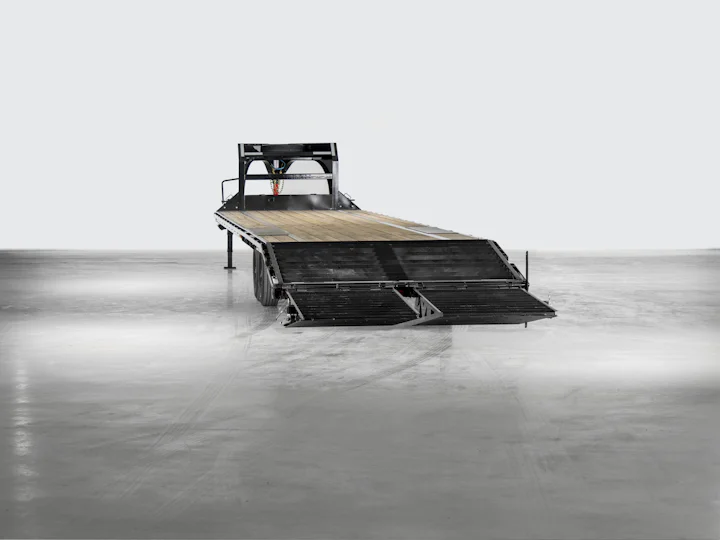

Rear loading

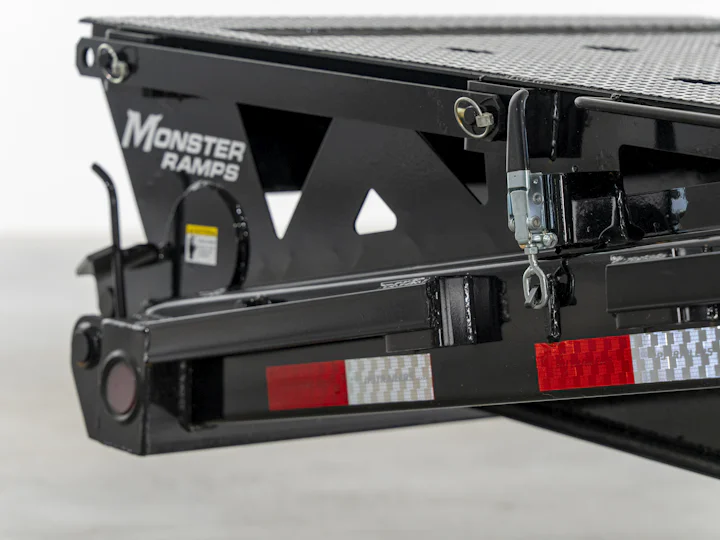

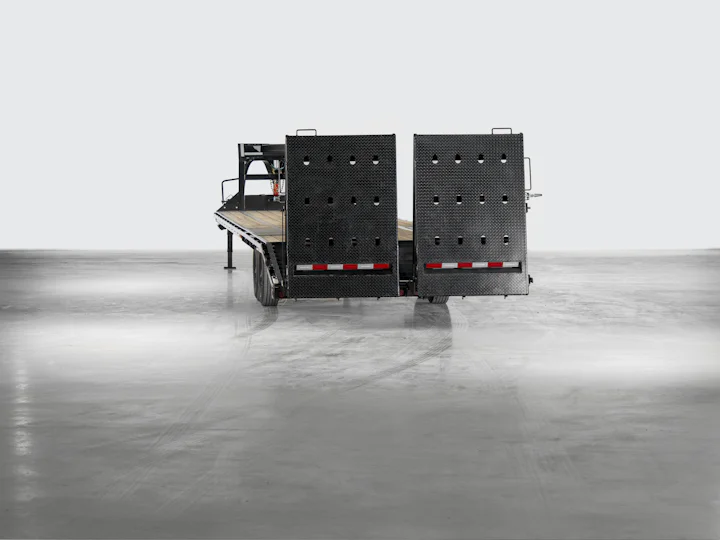

8 ft slide-in ramps / Dovetail with Monster ramps

Best for

  • Heavier freight
  • Long deck
  • Equipment

Weighing options? Compare flatbed trailers side by side →Ready to buy? Shop flatbed trailers for sale

Warranty

PJ Trailers

3-year main frame, 1-year limited; axles by the axle maker.

Structural / frame · main frame; ramps/rails 1 yr
3 years
Components · non-wearing items
1 year

Configure & locate

Choose a configuration

GVWR

$15,799
LX · 40 ft · 18K GVWR · 8 ft slide-in ramps
GVWR
18,000 lb
In stock
10 trailers

Availability · 14 locations

See all 14 LX trailers across 5 locations
